Heyco® Plugs for Threaded Ports

For SAE Threaded Ports

  • Part Numbers and Specifications
  • Features
SAE
THREADED
PORT

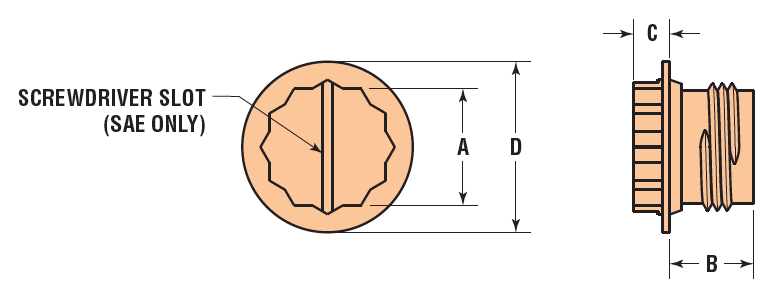

SIZE		 PART NO. DESCRIPTION PART DIMENSIONS
  A
12-Point
Socket
Size*		 B
Depth		 C
Head
Height		 D
Shoulder
Diameter
in. mm. in. mm. in. mm.

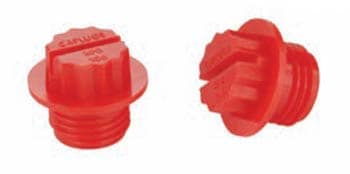

For SAE Threaded Ports - 12 Point Head - Red Color - with Integral Sealing Ring*
7/16-24 G5420 PSAE 7/16-24 3/8 .34 8,6 .26 6,6 .66 16,8
7/16-20 G5421 PSAE 7/16-20
1/2-20 G5422 PSAE 1/2-20 7/16 .34 8,6 .30 7,6 .73 18,5
9/16-18 G5423 PSAE 9/16-18 1/2 .36 9,1 .30 7,6 .80 20,3
3/4-16 G5424 PSAE 3/4-16 11/16 .41 10,4 .31 7,9 1.02 25,9
7/8-14 G5425 PSAE 7/8-14 13/16 .53 13,5 .31 7,9 1.16 29,5
1-1/16-12 G5426 PSAE 1-1/16-12 1 .61 15,5 .31 7,9 1.45 36,8
1-5/16-12 G5427 PSAE 1-5/16-12 1-1/4 .61 15,5 .33 8,4 1.74 44,2
1-5/8-12 G5428 PSAE 1-5/8-12 1-9/16 .61 15,5 .33 8,4 2.17 55,1
1-7/8-12 G5429 PSAE 1-7/8-12 1-7/8 .62 15,7 .34 8,6 2.42 61,5

* SAE Threaded Ports feature a slotted Socket Head.

  • Provide a dual, positive seal on SAE and ISO straight-threaded ports.
  • Integral Sealing Ring seats into the bevel of the threaded opening to prevent oil or fluid leakage.
  • Lip on the flange compresses against the mounting hole surface, keeping contaminants from the spot face.
  • Suitable for gasketing (optional).
  • Slotted, 12-point head for screwdriver, socket or wrench tightening.
  • Round “socket pattern” Head.

QuickSpecs

Material HDPE
Temperature Range 0°F (-18°C) to 165°F (74°C)
