Heyco® Shorty Window Plugs
- Features
- Part Numbers and Specifications
- Lock firmly into panel up to .062" (1,6 mm) thick. Limited intrusion inside the panel.
- Molded of transparent polycarbonate for internal viewing or light transmission.
- Snap into mounting holes with fingertip pressure–no tools required.
- Locking fingers in fractional increments up to the maximum panel thickness.
- Multiple sizes for use in .510" (13,0 mm) to 1.010˝ (25,7 mm) diameter holes.
- Flammability Rating 94V-2.
- Available in a variety of tints besides clear–consult Heyco.
QuickSpecs
| Material | Polycarbonate |
|---|---|
| Flammability Rating | 94V-2 |
| Material Temperature Index | 275°F (135°C) - Maximum temperature on part not to exceed 239°F (115°C) |
| MOUNTING HOLE DIAMETER |

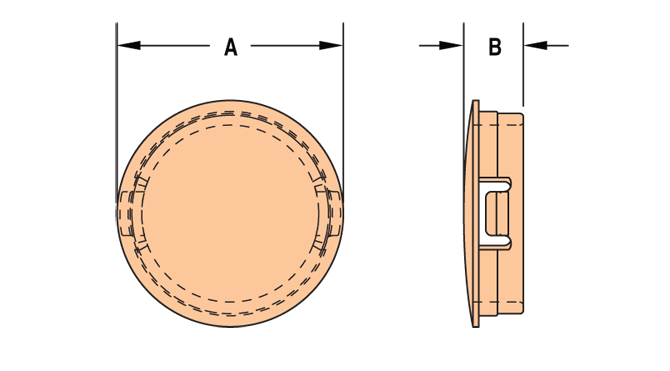

PART NO. | DESCRIPTION | PART DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| Clear* | A Head Diameter |
B Overall Height |
|||||
| in. | mm. | in. | mm. | in. | mm. | ||
Single Locking Step for Panel Thickness up to .062" (1,6 mm) |
|||||||
| .510 | 13,0 | 1292 | SWP 500 | .563 | 14,3 | .250 | 6,4 |
| .635 | 16,1 | 1293 | SWP 625 | .734 | 18,6 | ||
| .760 | 19,3 | 1294 | SWP 750 | .859 | 21,8 | ||
| .885 | 22,5 | 1295 | SWP 875 | .953 | 24,2 | ||
| 1295AA | SWP 875 Infrared* | ||||||
| 1.010 | 25,7 | 1296 | SWP 1000 | 1.125 | 28,6 | ||
*Consult Heyco for Shorty Window Plugs in tinted colors.
