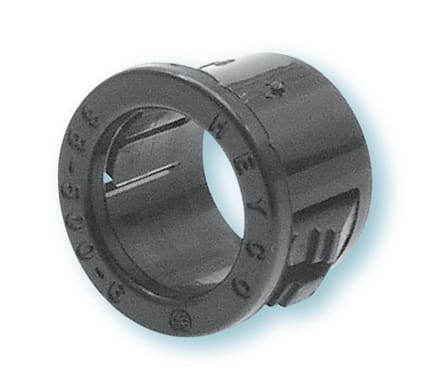

Heyco® Snap Bushings

Mounting Hole Diameter Range: 1.000" (25,4 mm) to 2.500" (63,5 mm)

  • Part Numbers and Specifications
  • Features
MOUNTING HOLE
DIAMETER

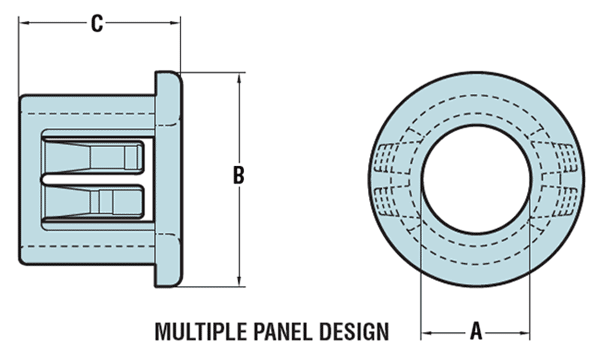

PART NO. DESCRIPTION PART DIMENSIONS CAD
Black White A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
in. mm. in. mm. in. mm. in. mm.

Multiple Locking Steps for Panel Thickness up to .125" (3,2 mm)

1.000 25,4 2140 2141 SB 1000-12 .77 19,4 1.13 28,6 .45 11,5 CAD
1.093-1.125 27,8-28,6 2160 2161 SB 1093-13 .81 20,6 1.22 30,9 CAD
2163 2164 SB 1093-14 .88 22,2 CAD
2166 2167 SB 1093-15 .94 23,8 CAD
1.187 30,2 2182 2183 SB 1187-15 .94 23,8 1.32 33,5 CAD
1.250 31,8 2198 2199 SB 1250-15 .94 23,8 1.36 34,5 CAD
2201 2202 SB 1250-16 1.00 25,4 1.31 33,3 CAD
1.375 34,9 2207 2208 SB 1375-14 .88 22,2 1.49 37,9 CAD
2210 2211 SB 1375-16 1.01 25,8 CAD
1.500 38,1 2233 2234 SB 1500-17 1.06 27,0 1.61 40,9 CAD
2236 2237 SB 1500-18 1.13 28,6 CAD
2240 2241 SB 1500-21 1.31 33,3 CAD
1.625 41,3 2273 2274 SB 1625-21 1.31 33,3 1.74 44,2 CAD
1.750 44,5 2300 2301 SB 1750-22 1.38 34,9 1.88 47,6 CAD
1.875 47,6 2287 2288 SB 1875-24 1.50 38,1 2.00 50,8 CAD
2.000 50,8 2400 2401 SB 2000-26 1.64 41,6 2.13 54,0 CAD
2406 2414 SB 2000-28 1.75 44,5 CAD

Multiple Locking Steps for Panel Thickness up to .250" (6,4 mm)

2.093 53,1 2415 2416 SB 2.093-29 1.81 46,0 2.35 59,7 .72 18,3 CAD
2.250 57,2 2419 - SB 2.250-29-180 1.80 45,7 2.48 63,1 CAD
2417 2418 SB 2.250-29 1.86 47,1 CAD
2.500 63,5 2420 2421 SB 2.500-31 1.97 50,0 2.66 67,5 CAD

Standard colors black and white. Consult Heyco for other colors.

  • Convert raw-edged holes to smooth, neat, insulated holes.
  • Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
  • Locking fingers snap into holes with fingertip pressure.
  • Locking fingers in fractional increments up to the maximum panel thickness.
  • Withstand a push back force of 35 pounds.
  • Available in multiple sizes for use in .250" (6,4 mm) to 6.00" (152,4 mm) diameter holes.
  • We offer the following brass-colored parts for lamp and lighting applications:
    Part No. 2012, SB 312-3 Brass
    Part No. 2033, SB 375-4 Brass
    Part No. 2041, SB 437-4 Brass

QuickSpecs

Material   Nylon 6/6
Certifications ru Recognized under the Component Program of Underwriters' Laboratories File E15331
csa Certified by the Canadian Standards Association File 8919
Flammability Rating   94V-2
Temperature Range   -.4°F (-18°C) to 221°F (105°C)
