Heyco® Window Plugs
- Features
- Part Numbers and Specifications

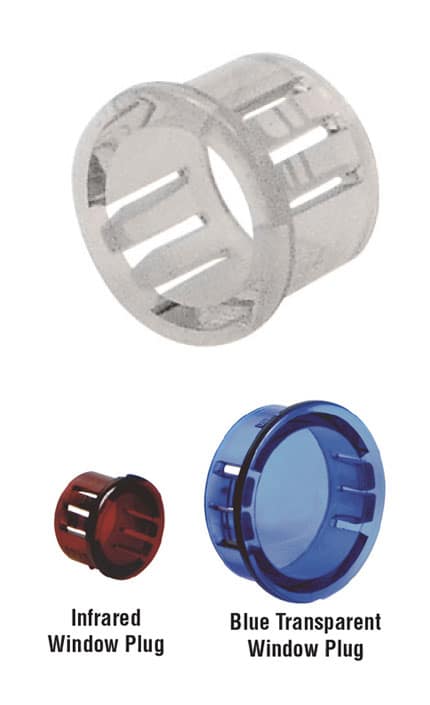

- Molded of transparent polycarbonate for internal viewing or light transmission.
- Snap into mounting holes with fingertip pressure-no tools required.
- Multiple sizes for use in .187" (4,7 mm) to 2.00" (50,8 mm) diameter holes.
- Lock firmly into panel up to .125" (3,2 mm) thick.
- Locking fingers in fractional increments up to the maximum panel thickness.
- Approximate Head Thickness: .062" (1,6 mm). Thickness may vary.
- Available in a variety of tints besides clear–consult Heyco.
QuickSpecs
| Material | Polycarbonate |
|---|---|
| Flammability Rating | 94V-2 |
| Material Temperature Index | 275°F (135°C) - Maximum temperature on part not to exceed 239°F (115°C) |
| MOUNTING HOLE DIAMETER |
PART NO. | DESCRIPTION | PART DIMENSIONS | CAD | ||||
|---|---|---|---|---|---|---|---|---|

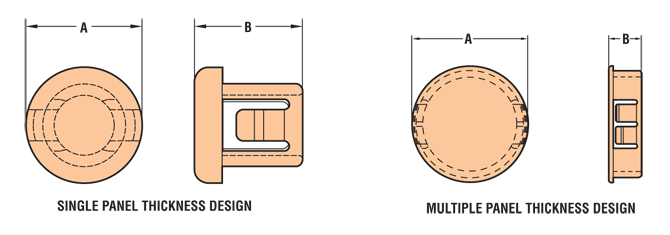

| Clear* | A Head Diameter |
B Overall Height |
||||||
| in. | mm. | in. | mm. | in. | mm. | |||
Single Locking Step for Panel Thickness up to .062" (1,6 mm) |
||||||||
| .187 | 4,7 | 1300 | WP 187 | .250 | 6,4 | .234 | 5,9 |  |
| .250 | 6,4 | 1301 | WP 250 | .312 | 7,9 | .312 | 7,9 | |
| .312 | 7,9 | 1302 | WP 312 | .375 | 9,5 | |
||
Multiple Locking Steps for Panel Thickness up to .125" (3,2 mm) |
||||||||
| .375 | 9,5 | 1303 | WP 375 | .468 | 11,9 | .406 | 10,3 | |
| .437 | 11,1 | 1304 | WP 437 | .531 | 13,5 | |
||
| .500 | 12,7 | 1305 | WP 500 | .563 | 14,3 | |
||
| .625 | 15,9 | 1307 | WP 625 | .734 | 18,6 | |
||
| .750 | 19,1 | 1309 | WP 750 | .859 | 21,8 | |
||
| .875 | 22,2 | 1311 | WP 875 | .953 | 24,2 | .453 | 11,5 | |
| 1.000 | 25,4 | 1312 | WP 1000 | 1.125 | 28,6 | |
||
| 1.093-1.125 | 27,8-28,6 | 1313 | WP 1093 | 1.218 | 30,9 | |
||
| 1.375 | 34,9 | 1314 | WP 1375 | 1.500 | 38,1 | |
||
| 1.500 | 38,1 | 1316 | WP 1500 | 1.620 | 41,2 | |
||
| 1.750 | 44,4 | 1318 | WP 1750 | 1.875 | 47,6 | |
||
| 2.000 | 50,8 | 1319 | WP 2000 | 2.157 | 54,8 | |
||
*Consult Heyco for Window Plugs in tinted colors.
