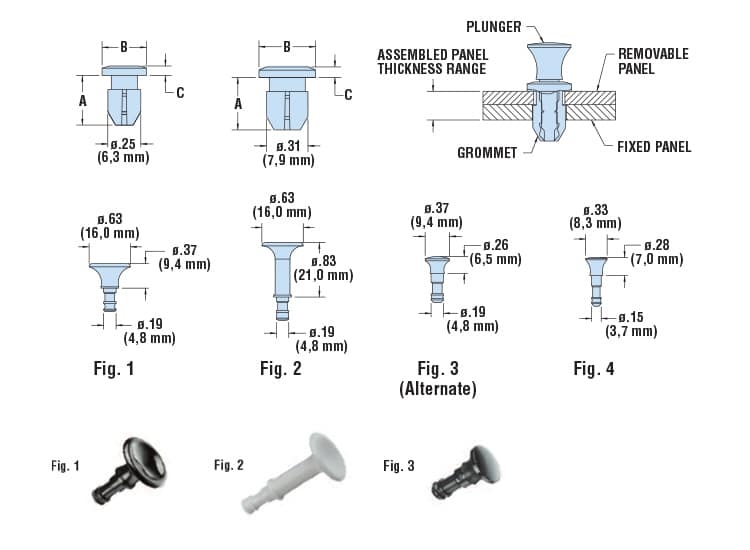

| DIÁMETRO DE ORIFICIO EN PANEL FIJO | GROSOR DEL PANEL REMOVIBLE | NO. DE PARTE | DESCRIPCIÓN | ÉMBOLO COMPATIBLE | DIMENSIONES DE LA PIEZA | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Negro | Blanco | Negro | Blanco | A Longitud del cuerpo | B Diámetro de la cabeza | C Altura de la cabeza | ||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||||
| .253 | 6.4 | .043 | 1,1 | 12283 | 12284 | HSLG-1M | 12261 | 12262 | .31 | 8.0 | .33 | 8.5 | .07 | 1.8 |
| .063 | 1,6 | 12285 | 12286 | HSLG-2M | 12263 | 12264 | .33 | 8.5 | ||||||
| .098 | 2,5 | 12287 | 12288 | HSLG-3M | 12265 | 12266 | .37 | 9.5 | ||||||
| .161 | 4,1 | 12289 | 12290 | HSLG-4M | 12267 | 12268 | .43 | 11.0 | ||||||
| .319 | 8.1 | .043 | 1,1 | 17000 | 17000W | HSLG-SL | 17005 | 17005W | .34 | 8.6 | .43 | 10.8 | .08 | 2.0 |
| .063 | 1,6 | 17001 | 17001W | HSLG-1L | 17006 17007 | 17006W 17007W | .35 | 9.0 | ||||||
| .098 | 2,5 | 17002 | 17002W | HSLG-2L | 17008 | 17008W | .39 | 10.0 | ||||||
| .161 | 4,1 | 17003 | 17003W | HSLG-3L | 17009 | 17009W | .46 | 11.7 | ||||||
| .209 | 5,3 | 17004 | 17004W | HSLG-4L | 17010 | 17010W | .51 | 12.9 | ||||||
| DIÁMETRO DE ORIFICIO EN PANEL REMOVIBLE | GROSOR DEL ENSAMBLE | NO. DE PARTE | DESCRIPCIÓN | ESTILO DE ÉMBOLO | BUJE COMPATIBLE | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mínimo | Máximo | Negro | Blanco | Fig. | Alt. | Negro | Blanco | |||||
| in. | mm. | in. | mm. | in. | mm. | |||||||
| .237 | 6.0 | .059 | 1.5 | .146 | 3.7 | 12261 | 12262 | HSLPB-1M | 4 | N/A | 12283 | 12284 |
| .079 | 2.0 | .165 | 4.2 | 12263 | 12264 | HSLPB-2M | 4 | 12285 | 12286 | |||
| .118 | 3.0 | .205 | 5.2 | 12265 | 12266 | HSLPB-3M | 4 | 12287 | 12288 | |||
| .181 | 4.6 | .272 | 6.9 | 12267 | 12268 | HSLPB-4M | 4 | 12289 | 12290 | |||
| .299 | 7.6 | .059 | 1.5 | .146 | 3.7 | 17005 | 17005W | HSLPL-SL | 1 | 3 | 17000 | 17000W |
| .079 | 2.0 | .165 | 4.2 | 17006 | 17006W | HSLPL-1L | 1 | 3 | 17001 | 17001W | ||
| 17007 | 17007W | HSLPL-21L | 2 | 3 | ||||||||
| .118 | 3.0 | .205 | 5.2 | 17008 | 17008W | HSLPL-2L | 1 | 3 | 17002 | 17002W | ||
| .181 | 4.6 | .272 | 6.9 | 17009 | 17009W | HSLPL-3L | 1 | 3 | 17003 | 17003W | ||
| .228 | 5.8 | .315 | 8.0 | 17010 | 17010W | HSLPL-4L | 1 | 3 | 17004 | 17004W | ||
| BUJES | ÉMBOLOS ALTERNATIVOS | |||
|---|---|---|---|---|
| Negro | Blanco | Negro | Blanco | DESC. |
| 17000 | 17000W | 17011 | 17011W | HSLPB-SL |
| 17001 | 17001W | 17012 | 17012W | HSLPB-1L |
| 17002 | 17002W | 17013 | 17013W | HSLPB-2L |
| 17003 | 17003W | 17014 | 17014W | HSLPB-3L |
| 17004 | 17004W | 17015 | 17015W | HSLPB-4L |
| Émbolo: | Buje: | |
| Material | Nylon 6 | Policarbonato estabilizado térmicamente |
| Clasificación de inflamabilidad | UL 94V-2 | UL 94V-2 |
| Rango de temperatura | -40°F (-40°C) a 185°F (85°C) | -22°F (-30°C) a 257°F (125°C) |
