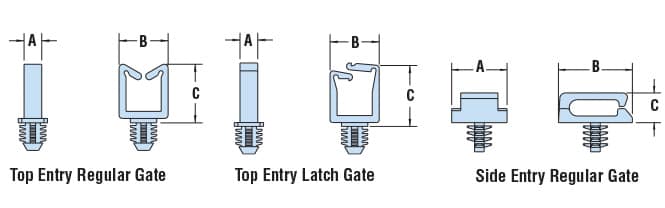

| CAPACIDAD DE CABLE | NO. DE PARTE | DESCRIPCIÓN | ALTURA TOTAL C | HUELLA A x B | DIÁMETRO DEL ORIFICIO DE MONTAJE | ||||
|---|---|---|---|---|---|---|---|---|---|
| Natural | |||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||
Entrada superior - compuerta estándar |
|||||||||
| .44 x .19 | 11.1 x 4.8 | 4202 | CH RB-13 | .51 | 13.0 | .22 x .61 | 5.5 x 15.5 | .312 | 7.9 |
| .44 x .38 | 11.1 x 9.7 | 4203 | CH RB-18 | .71 | 18.0 | ||||
| .44 x .74 | 11.1 x 18.8 | 4204 | CH RB-27 | 1.06 | 26.9 | ||||
| .44 x 1.05 | 11.1 x 26.7 | 4205 | CH RB 35 | 1.40 | 35.6 | ||||
Entrada superior - compuerta con seguro |
|||||||||
| .44 x .14 | 11.1 x 3.6 | 4206 | CH LB-13 | .51 | 13.0 | .22 x .61 | 5.6 x 15.5 | .312 | 7.9 |
| .44 x .33 | 11.1 x 8.4 | 4207 | CH LB-18 | .71 | 18.0 | ||||
| .44 x 69 | 11.1 x 17.5 | 4208 | CH LB-27 | 1.06 | 27.0 | ||||
| .44 x 1.00 | 11.1 x 25.4 | 4209 | CH LB 35 | 1.38 | 35.0 | ||||
Entrada lateral - compuerta estándar* |
|||||||||
| .11 x .33 | 2.8 x 8.3 | 4220 | CH RB-13-90 | .20 | 5.1 | .37 x .50 | 9.5 x 12.7 | .157 | 4.0 |
| .11 x .49 | 2.8 x 12.5 | 4221 | CH RB-17-90 | .20 | 5.1 | .37 x .67 | 9.5 x 17.0 | ||
| Material | Nylon 6/6 | |
|---|---|---|
| Clasificación de inflamabilidad | 94V-2 | |
| Rango de temperatura | 32°F (0°C) a 185°F (85°C) |
