| DIÁMETRO MÁXIMO DEL HAZ | NO. DE PARTE | DESCRIPCIÓN | BASE A x B | ALTURA TOTAL C | ANCHO DE SUJECIÓN D | DIÁMETRO DEL ORIFICIO DE MONTAJE | CAD | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gray | Black | ||||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||||

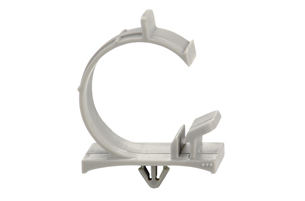

Serie PMWC |
Para paneles de .02" (0.5 mm) a .08" (2.0 mm) de grosor |
||||||||||||
| .19 | 4.7 | 3845 | 3870 | PMWC 187-20 | .54 x 1.01 | 13.7 x 25.7 | .39 | 9.9 | .38 | 9.7 | .250 | 6.4 |  |
| .25 | 6.4 | 3846 | 3871 | PMWC 250-20 | .58 x 1.01 | 14.7 x 25.7 | .45 | 11.4 | .41 | 10.4 | |
||
| .38 | 9.5 | 3847 | 3872 | PMWC 375-20 | .65 x 1.01 | 16.5 x 25.7 | .53 | 13.5 | .50 | 12.7 | |
||
| .50 | 12.7 | 3848 | 3906 | PMWC 500-20 | .75 x 1.20 | 19.1 x 30.5 | .73 | 18.5 | .59 | 15.0 | |
||
| .75 | 19.1 | 3849 | 3908 | PMWC 750-20 | .88 x 1.38 | 22.4 x 35.1 | .99 | 25.1 | .67 | 17.0 | |
||
| 1.00 | 25.4 | 3853 | 3909 | PMWC 1000-20 | 1.37 x 1.88 | 34.8 x 47.8 | 1.35 | 34.3 | .99 | 25.1 | |
||
Para paneles de .09" (2.3 mm) a .15" (3.8 mm) de grosor |
|||||||||||||
| .19 | 4.7 | 3880 | 3910 | PMWC 187-90 | .54 x 1.01 | 13.7 x 25.7 | .39 | 9.9 | .38 | 9.7 | .250 | 6.4 | |
| .25 | 6.4 | 3881 | 3912 | PMWC 250-90 | .58 x 1.01 | 14.7 x 25.7 | .45 | 11.4 | .41 | 10.4 | |
||
| .38 | 9.5 | 3882 | 3913 | PMWC 375-90 | .65 x 1.01 | 16.5 x 25.7 | .55 | 14.0 | .50 | 12.7 | |
||
| .50 | 12.7 | 3883 | 3914 | PMWC 500-90 | .75 x 1.20 | 19.1 x 30.5 | .73 | 18.5 | .59 | 15.0 | |
||
| .75 | 19.1 | 3884 | 3915 | PMWC 750-90 | .88 x 1.38 | 22.4 x 35.1 | .99 | 25.1 | .67 | 17.0 | |
||
| 1.00 | 25.4 | 3885 | 3916 | PMWC 1000-90 | 1.37 x 1.88 | 34.8 x 47.8 | 1.35 | 34.3 | .99 | 25.1 | |
||
| Material | Nylon 6/6 |
|---|---|
| Clasificación de inflamabilidad | 94V-2 |
| Rango de temperatura | 32°F (0°C) a 185°F (85°C) – Gris 32°F (0°C) a 221°F (105°C) – Negro |
