| DIÁMETRO MÁXIMO DEL HAZ | NO. DE PARTE | DESCRIPCIÓN | ALTURA DEL ESPACIADOR A | LONGITUD TOTAL SOBRE EL PANEL C | DIÁMETRO DEL ORIFICIO DE MONTAJE | ||||
|---|---|---|---|---|---|---|---|---|---|
| Natural | |||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||

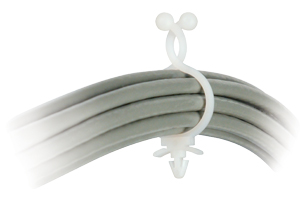

Serie PMLL |
Para paneles de .03" (0.8 mm) a .08" (2.0 mm) de grosor |
||||||||
| .28 | 7.0 | 14155M | PMLL 28-16-1 | .16 | 4.0 | .91 | 23.1 | .156 | 4.0 |
| 14155 | PMLL 28-19-1 | .19 | 4.8 | .94 | 23.9 | ||||
| 14156 | PMLL 28-50-1 | .50 | 12.7 | 1.25 | 31.8 | ||||
| 14157 | PMLL 28-75-1 | .75 | 19.1 | 1.50 | 38.2 | ||||
| 14158 | PMLL 28-100-1 | 1.00 | 25.4 | 1.75 | 44.5 | ||||
| 4155M | PMLL 28-16 | .16 | 4.0 | .91 | 23.1 | .236 | 6.0 | ||
| 4155 | PMLL 28-19 | .19 | 4.8 | .94 | 23.9 | ||||
| 4156 | PMLL 28-50 | .50 | 12.7 | 1.25 | 31.8 | ||||
| 4157 | PMLL 28-75 | .75 | 19.1 | 1.50 | 38.2 | ||||
| 4158 | PMLL 28-100 | 1.00 | 25.4 | 1.75 | 44.5 | ||||
| .39 | 10.0 | 4160 | PMLL 39-19 | .19 | 4.8 | 1.10 | 27.9 | ||
| 4161 | PMLL 39-50 | .50 | 12.7 | 1.41 | 35.8 | ||||
| 4162 | PMLL 39-72 | .75 | 19.1 | 1.66 | 42.2 | ||||
| 4163 | PMLL 39-100 | 1.00 | 25.4 | 1.91 | 48.5 | ||||
| .50 | 12.5 | 4165 | PMLL 50-19 | .19 | 4.8 | 1.28 | 32.5 | ||
| 4166 | PMLL 50-50 | .50 | 12.7 | 1.59 | 40.4 | ||||
| 4167 | PMLL 50-75 | .75 | 19.1 | 1.84 | 46.8 | ||||
| 4168 | PMLL 50-100 | 1.00 | 25.4 | 2.09 | 53.1 | ||||
| .59 | 15.0 | 4170M | PMLL 59-16 | .16 | 4.0 | 1.44 | 36.5 | ||
| 4170 | PMLL 59-19 | .19 | 4.8 | 1.47 | 37.2 | ||||
| 4171 | PMLL 59-50 | .50 | 12.7 | 1.78 | 45.2 | ||||
| 4172 | PMLL 59-75 | .75 | 19.1 | 2.03 | 51.6 | ||||
| 4173 | PMLL 59-100 | 1.00 | 25.4 | 2.28 | 57.9 | ||||
Para paneles de hasta .09" (2.4 mm) de grosor |
|||||||||
| .25 | 6.4 | 3778 | PMLL 250 | .14 | 3.6 | .93 | 23.6 | .185 | 4.7 |
| .38 | 9.5 | 3779 | PMLL 375 | .14 | 3.6 | 1.11 | 28.2 | ||
| .50 | 12.7 | 3780 | PMLL 500 | .14 | 3.6 | 1.26 | 32.0 | ||
| .75 | 19.1 | 3782 | PMLL 750 | .14 | 3.6 | 1.55 | 39.4 | ||
Para paneles de hasta .06" (1.5 mm) de grosor |
|||||||||
| 1.00 | 25.4 | 3796 | PMLL 1000 | .14 | 3.6 | 2.22 | 56.4 | .250 | 6.4 |
| Material | Nylon 6/6 |
|---|---|
| Clasificación de inflamabilidad | 94V-2 |
| Rango de temperatura | 32°F (0°C) a 185°F (85°C) |
