Contratuercas de nylon Heyco® rosca NPT
Rosca NPT con roscas NPS rectas para uso con conexiones roscadas NPT.
| TIPO Y TAMAÑO DE ROSCA | NO. DE PARTE A GRANEL | NO. DE PARTE PAQUETE DE 100 | DESCRIPCIÓN | DIMENSIONES DE LA PIEZA | CAD | |||||
|---|---|---|---|---|---|---|---|---|---|---|

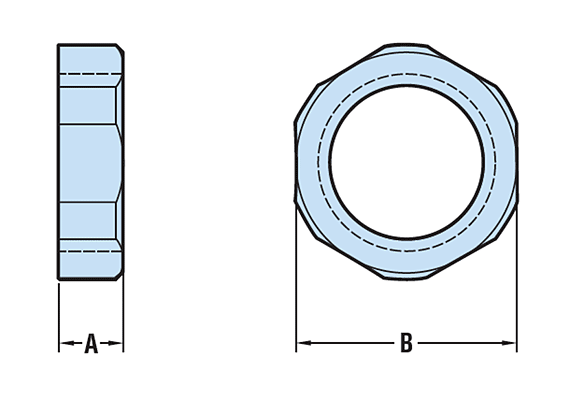

| Negro | Gris | Negro | Gris | A Grosor | B Caras planas para llave | |||||
| in. | mm. | in. | mm. | |||||||
| 1/4 NPT | M9142 | M9143 | 3269 | 3270 | NLN 1/4 NPT | .265 | 6.7 | .748 | 19.0 |  |
| 3/8 NPT | 8461 | 8462 | 3271 | 3272 | NLN 3/8 NPT | .265 | 6.7 | 1.058 | 26.9 | |
| 1/2 NPT | 8463 | 8464 | 3273 | 3274 | NLN 1/2 NPT | .265 | 6.7 | 1.058 | 26.9 | |
| 3/4 NPT | 8465 | 8466 | 3275 | 3276 | NLN 3/4 NPT | .265 | 6.7 | 1.295 | 32.9 | |
| 1 NPT | 8467 | 8468 | 3277 | 3278 | NLN 1 NPT | .265 | 6.7 | 1.605 | 40.8 | |
| 1-1/4 NPT | M9144 | M9145 | 3279* | - | NLN 1-1/4 NPT | .281 | 7.1 | 1.968 | 50.0 | |
| 1-1/2 NPT | M9150 | M9151 | - | - | NLN 1-1/2 NPT | .320 | 8.1 | 2.735 | 69.5 | |
| 2 NPT | M9156 | M9157 | - | - | NLN 2 NPT | .375 | 9.5 | 2.835 | 72.0 | |
Clasificación de inflamabilidad 94V-2 estándar. Consultar con Heyco para material V0.
| Material | Nylon 6/6 |
|---|---|
| Rango de temperatura | 40°F (-40°C) a 221°F (105°C) |
