Heyco®-Tite UL Listed/Recognized and CSA Certified Liquid Tight Cordgrips for Solar Applications
Multi-Hole, NPT Hubs with Integral Sealing Ring
IP 68 Rated
The Ultimate in Liquid Tight Strain Relief Protection
| GLAND CONFIGURATION Conductors |
PART NO. | DESC. |
|
PART DIMENSIONS | CAD | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A Clearance Hole Dia. |
B Max. O.A. Length |
C Thread Length |
D Wrenching Nut Thk. |
E Wrenching Nut Flat Size |
|||||||||||
| Black | |||||||||||||||
| Size mm. |
No. | ||||||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||||||
Standard Multi-Hole Gland - Assembled Metal Locknuts INCLUDED |
|||||||||||||||
| 4,5 | 9 | M8437GBF | LTCG 1 |  |
1.326 | 33,8 | 2.41 | 61,2 | .76 | 19,3 | .30 | 7,6 | 1.73 | 43,9 |  |
| 13 | M4524GBG | LTCG 1-1/4 | |
1.680 | 42,7 | 2.69 | 68,3 | .78 | 19,8 | .30 | 7,6 | 2.05 | 52,1 | |
|
| 5,2 | 2 | M3231GAE | LTCG 1/2 |   |
.875 | 22,2 | 1.70 | 43,2 | .61 | 15,5 | .21 | 5,3 | .98 | 24,9 | |
| 3 | M3234GAF | LTCG 3/4 | |
1.109 | 28,2 | 2.00 | 50,8 | .62 | 15,7 | .25 | 6,4 | 1.30 | 33,0 | ||
| 4 | M3234GAG | ||||||||||||||
| 5,6 | 3 | M3200GAH | LTCG LL 1/2 | |
.875 | 22,2 | 1.68 | 42,7 | .44 | 11,2 | .25 | 6,4 | 1.06 | 26,9 | |
Skinned-Over Break-Thru Solar Masthead Gland - Assembled Metal Locknuts INCLUDED |
|||||||||||||||
| 5,5 | 5 | M3234GBR-SM | SMCG 3/4 | |
1.109 | 28,2 | 2.00 | 50,8 | .62 | 15,7 | .25 | 6,4 | 1.30 | 33,0 | |
| 9 | M8437GBK-SM | SMCG 1 | |
1.326 | 33,8 | 2.41 | 61,2 | .76 | 19,3 | .30 | 7,6 | 1.73 | 43,9 | |
|
| 13 | M4524GBM-SM | SMCG 1-1/4 | |
1.680 | 42,7 | 2.69 | 68,3 | .78 | 19,8 | .30 | 7,6 | 2.05 | 52,1 | |
|
| 21 | M3317GBQ-SM | SMCG 1-1/2 | |
1.920 | 48,8 | 2.81 | 71,4 | .76 | 19,3 | .36 | 9,1 | 2.48 | 63,0 | |
|
| 31 | M3321GBY-SM | SMCG 2 | |
2.400 | 60,8 | 2.92 | 74,2 | .79 | 20,1 | .42 | 10,7 | 2.73 | 69,3 | |
|
| 5,6 | 3 | M3200GAH-SM | SMCG LL 1/2 | |
.875 | 22,2 | 1.68 | 42,7 | .44 | 11,2 | .25 | 6,4 | 1.06 | 26,9 | |
| 7,7 | 3 | M3234GBS-SM | SMCG 3/4 | |
1.109 | 28,2 | 2.00 | 50,8 | .62 | 15,7 | .25 | 6,4 | 1.30 | 33,0 | |
| 5 | M8437GBT-SM | SMCG 1 | |
1.326 | 33,8 | 2.41 | 61,2 | .76 | 19,3 | .30 | 7,6 | 1.73 | 43,9 | |
|
| 9 | M4524GBW-SM | SMCG 1-1/4 | |
1.680 | 42,7 | 2.69 | 68,3 | .78 | 19,8 | .30 | 7,6 | 2.05 | 52,1 | |
|
| 11 | M3317GBZ-SM | SMCG 1-1/2 | |
1.920 | 48,8 | 2.81 | 71,4 | .76 | 19,3 | .36 | 9,1 | 2.48 | 63,0 | |
|
| 19 | M3321GBX-SM | SMCG 2 | |
2.400 | 60,8 | 2.92 | 74,2 | .79 | 20,1 | .42 | 10,7 | 2.73 | 69,3 | |
|
| 8,9 | 7 | M4524GCJ-SM | SMCG 1-1/4 | |
1.680 | 42,7 | 2.69 | 68,3 | .78 | 19,8 | .30 | 7,6 | 2.05 | 52,1 | |
| 9 | M3317GCK-SM | SMCG 1-1/2 |  |
1.920 | 48,8 | 2.81 | 71,3 | .76 | 19,3 | .36 | 9,1 | 2.48 | 63,0 | |
|
| 12 | M3321GCM-SM | SMCG 2 | |
2.400 | 60,8 | 2.93 | 74,3 | .79 | 20,1 | .42 | 10,7 | 2.75 | 69,9 | |
|
Other Configurations with Approval Potential - Locknuts not included |
|||||||||||||||
| 6,0 | 2 | M3200GAJ | LTCG LL 1/2 | .875 | 22,2 | 1.68 | 42,7 | .44 | 11,2 | .25 | 6,4 | 1.06 | 27,0 | ||
| 4 | M3234GBC | LTCG 3/4 | 1.109 | 28,2 | 2.00 | 50,8 | .62 | 15,7 | .25 | 6,4 | 1.30 | 33,0 | |||
| 6,5 | 6 | M8437GAL | LTCG 1 | 1.326 | 33,8 | 2.41 | 61,2 | .76 | 19,3 | .30 | 7,6 | 1.73 | 43,9 | ||
| M4524GAL | LTCG 1-1/4 | 1.680 | 42,7 | 2.69 | 68,3 | .78 | 19,8 | .30 | 7,6 | 2.05 | 52,1 | ||||
| 7,0 | 3 | M3234GAM | LTCG 3/4 | 1.109 | 28,2 | 2.00 | 50,8 | .62 | 15,7 | .25 | 6,4 | 1.30 | 33,0 | ||
| 7,4 | 2 | M3234GAN | |||||||||||||
| Material | Nylon 6/6 with TPE sealing gland | |
|---|---|---|
| Certifications |  |
Listed under Underwriters’ Laboratories File E51579 |
|
Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements | |
 |
Certified by the Canadian Standards Association File 93876 | |
| Flammability Rating | 94V-2 | |
| Temperature Range |
Static -40°F (-40°C) to 239°F (112°C) |
|
| IP Rating | IP 68 |

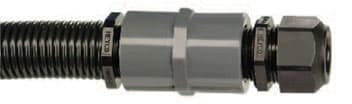

Use Heyco Multi-Hole Cordgrips with Heyco Female Threaded Couplings and
Heyco-Flex III Tubing to insulate exposed PV wiring when making complete liquid
tight connections to solar combiner or inverter enclosures. Click here for details.
