Heyco ® Quarter-Turn Mount Wire Clips CHQTM-5 L

Specifications

Part number and specification

WIRE CAPACITY		PART NO.			DESCRIPTION	PART DIMENSION

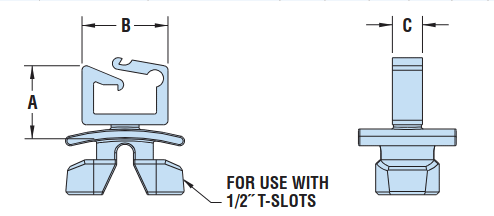

WIRE CAPACITY		Nylon 6/6 Natural	HS Nylon 6/6 Black	VO Nylon 6/6 Black		A Height		B Width		C Depth
in.	mm.	Nylon 6/6 Natural	HS Nylon 6/6 Black	VO Nylon 6/6 Black		in.	mm.	in.	mm.	in.	mm.
.44 x .14	11,1 x 3,6	4421	4421B	4421F	CHQTM-5 L-12	.50	12,7	.61	15,5	.22	5,6
.44 x .33	11,1 x 8,4	4426	4426B	4426F	CHQTM-5 L-18	.74	18,8
.44 x .69	11,1 x 17,5	4431	4431B	4431F	CHQTM-5 L-27	1.09	27,7
.44 x 1.00	11,1 x 25,4	4436	4436B	4436F	CHQTM-5 L-35	1.40	35,6

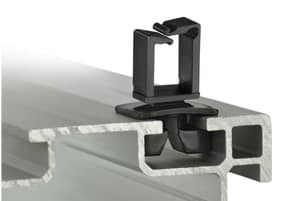

All new Quarter-Turn Mount (QTM-5) products, designed to work with the standard Powermation rail and racking systems for industrial automation and robotics workstations.
QTM-5 could be used in any 1/2˝ T-Slot racking or rail system from other manufacturers.
Simple application by hand with quick twist 90° swivel for friction fit hold in place – high pull out retention.
Simply twist to remove for routing and location adjustment.
Material choices cover a number of application requirements for flammability and temperature.
Gather and direct single or bundles of wires at low cost.
Vertical for top entry and narrow width for easy application of wires and small footprint.
Latch gate locks cables in place.
Latch gate releasable for repair, replace or addition to previously placed wires.

Material	Natural Nylon 6/6	Black Heat Stable / UV Stable Nylon	Black Nylon 6/6
Flammability Rating	UL 94 V-2	UL 94 V-2	UL 94 V-0
Temperature Range	32°F (0°C) to 185°F (85°C)	-40°F (-40°C) to 239°F (115°C)	-40°F (-40°C) to 185°F (85°C)
