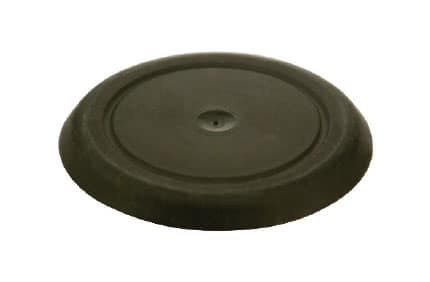

Heyco® Metric Ergonomic Plugs
For Panel Thickness from 0,8 mm (.03" ) to
2,0 mm (.08" )
Mounting Hole Diameter Range: 14,5 mm (.57") to
34,0 mm (1.34")
- Part Numbers and Specifications
- Features
| MOUNTING HOLE DIAMETER |
PART NO. | DESCRIPTION | PART DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|---|---|

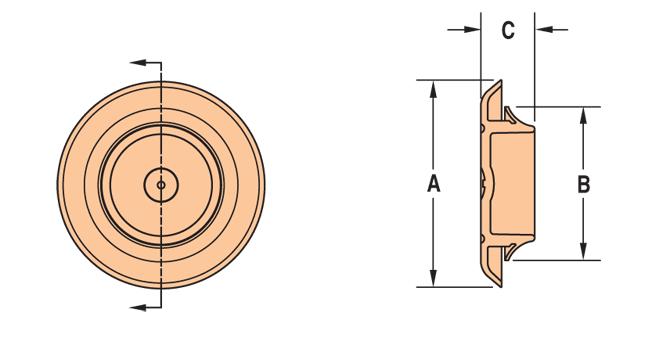

| NOMINAL | DIAMETER RANGE | Black | A Head Diameter |
B Bottom Diameter |
C Overall Height |
|||||
| mm. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | ||
| 15 | 14,5-16,0 | .57-.63 | 9690 | SMP E-M15 | 25,0 | .98 | 18,0 | .71 | 7,8 | .31 |
| 17 | 15,2-18,0 | .65-.71 | 9691 | SMP E-M17 | 28,0 | 1.10 | 20,3 | .80 | ||
| 19 | 18,5-20,0 | .73-.79 | 9692 | SMP E-M19 | 30,2 | 1.19 | 22,5 | .89 | ||
| 21 | 20,5-22,0 | .81-.87 | 9693 | SMP E-M21 | 32,0 | 1.26 | 24,3 | .96 | ||
| 23 | 22,5-24,0 | .87-.95 | 9694 | SMP E-M23 | 34,0 | 1.34 | 26,4 | 1.04 | ||
| 25 | 24,5-26,0 | .97-1.02 | 9695 | SMP E-M25 | 35,0 | 1.38 | 28,0 | 1.10 | ||
| 27 | 26,5-28,0 | 1.04-1.10 | 9696 | SMP E-M27 | 38,0 | 1.50 | 30,3 | 1.19 | ||
| 29 | 28,5-30,0 | 1.12-1.18 | 9697 | SMP E-M29 | 40,0 | 1.58 | 32,3 | 1.27 | ||
| 31 | 30,5-32,0 | 1.20-1.26 | 9698 | SMP E-M31 | 42,0 | 1.65 | 34,3 | 1.35 | ||
| 33 | 32,5-34,0 | 1.28-1.34 | 9699 | SMP E-M33 | 44,0 | 1.73 | 36,3 | 1.43 | ||
Standard color black.
- Close unneeded sheet metal panel holes, ergonomically.
- Flush button head style.
- Quick, easy installation; quick, easy removal, too.
- Heyco Metric Ergonomic Plugs offer greater versatility because their pliable nature allows one plug size to fit a variety of different sized holes.
- UV resistant material allows plugs to be suitable for outdoor exposure (sunlight resistant).
- Available in multiple sizes from 14,5 mm (.57") through 34,0 mm (1.34") diameter holes.
QuickSpecs
| Material | Flex Temp (Thermoplastic Rubber) | |
|---|---|---|
| Temperature Range | -40°F (-40°C) to 221°F (105°C) |
