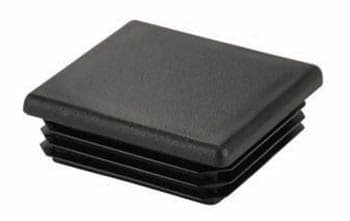

Heyco® Ergonomic Plugs
for Square Tubing

PSTE Series - Vinyl for Greater Flexibility

  • Part Numbers and Specifications
  • Features

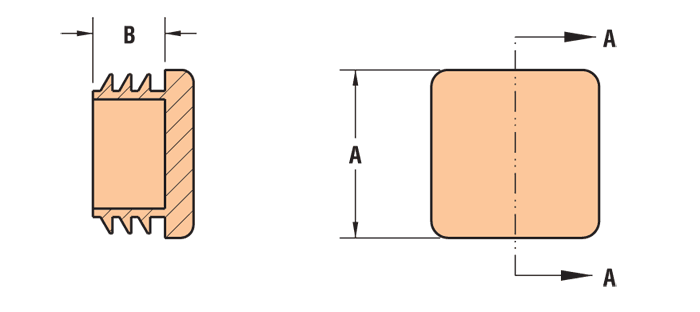

TUBE DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS
Inside Dimension Range Typical
Gauge
Black A
Outside
Dimension
B
Depth
Minimum Maximum
in. mm. in. mm. in. mm. in. mm.
.58 14,7 .68 17,3 14 - 20 G5320 PST E-75-14 .75 19,1 .43 10,9
.73 18,5 .83 21,1 10 - 14 G5321 PST E-100-10 1.00 25,4
.83 21,1 .93 23,6 14 - 20 G5322 PST E-100-14
1.08 27,4 1.18 30,0 14 - 20 G5323 PST E-125-14 1.25 31,8 .52 13,2
1.23 31,2 1.33 33,8 10 - 14 G5324 PST E-150-10 1.50 38,1
1.33 33,8 1.43 36,3 14 - 20 G5325 PST E-150-14
1.73 43,9 1.83 46,5 14 - 20 G5326 PST E-200-10 2.00 50,8

Standard color black.

  • Flexible, ribbed design allows quick and easy “fingertip” installation.
  • Removable without the use of tools (Traditional glides and tube plugs are designed to be permanent. Their rigid design makes removal very difficult).
  • Injection molded for intricate detail and design, with flexibility.
  • View HEYCaps and Plugs for Round Tubing.
  • View Heyco Plugs for Rectangular Tubing.
  • Material: Vinyl. Vinyl decreases mobility or sliding on floors, helping to keep your application in place.

QuickSpecs

Material Vinyl
Temperature Range 26°F (-32°C) to 200°F (93°C)
