Heyco® Plugs for Threaded Ports
For ISO Threaded Ports
- Part Numbers and Specifications
- Features

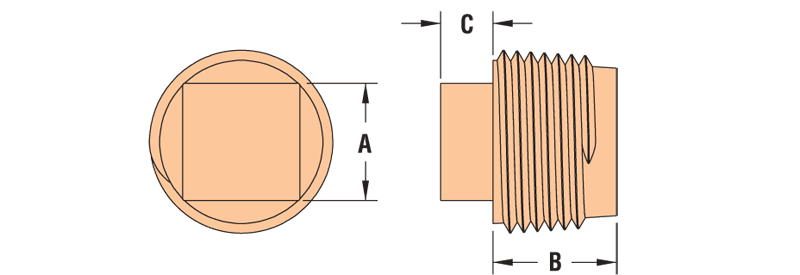

| ISO THREADED PORT SIZE |
PART NO. | DESCRIPTION | PART DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A 12-Point Socket Size* |
B Depth |
C Head Height |
D Shoulder Diameter |
||||||
| in. | mm. | in. | mm. | in. | mm. | ||||

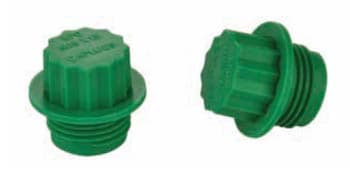

For ISO Threaded Ports - Green Color - with Integral Sealing Ring |
|||||||||
| 10 x 1.5 | G5431 | PISO 10 | 10 | .33 | 8,4 | .33 | 8,4 | .65 | 16,5 |
| 12 x 1.5 | G5432 | PISO 12 | 12 | .41 | 10,4 | .34 | 8,6 | .73 | 18,5 |
| 14 x 1.5 | G5433 | PISO 14 | 12 | .41 | 10,4 | .38 | 9,7 | .81 | 20,6 |
| 18 x 1.5 | G5434 | PISO 18 | 16 | .41 | 10,4 | .44 | 11,2 | .97 | 24,6 |
| 22 x 1.5 | G5435 | PISO 22 | 20 | .41 | 10,4 | .44 | 11,2 | 1.12 | 28,4 |
| 27 x 2 | G5436 | PISO 27 | 24 | .41 | 10,4 | .44 | 11,2 | 1.36 | 34,5 |
- Provide a dual, positive seal on ISO straight-threaded ports.
- Integral Sealing Ring seats into the bevel of the threaded opening to prevent oil or fluid leakage.
- Lip on the flange compresses against the mounting hole surface, keeping contaminants from the spot face.
- Suitable for gasketing (optional).
- 12-point head for socket or wrench tightening.
- Round socket pattern Head.
QuickSpecs
| Material | Polypropylene |
|---|---|
| Temperature Range | -90°F (-70°C) to 250°F (121°C) |
