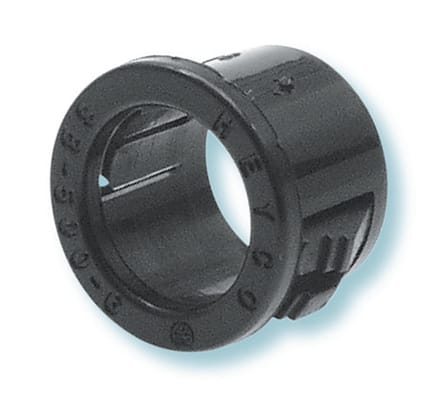

Heyco® Metric Snap Bushings

Multiple Locking Steps for Panel Thickness up to 2,5 mm (.098˝)
Mounting Hole Diameter Range: 16,0 mm (.630˝) to 34,2 mm (1.347˝)

  • Part Numbers and Specifications
  • Features
MOUNTING HOLE
DIAMETER

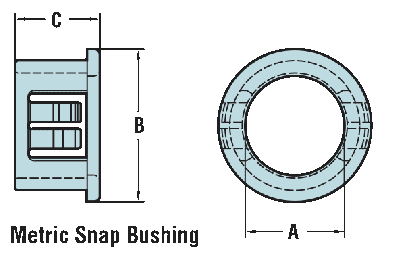

PART NO. DESCRIPTION PART DIMENSIONS CAD
Black A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
mm. in. mm. in. mm. in. mm. in.
13,0 .512 2150 MSB 13-10 10,0 .39 13,7 .54 10,3 .41
16,0 .630 2142 MSB 16-12 12,0 .47 18,5 .73 CAD
20,0 .787 2144 MSB 20-16 16,0 .63 22,6 .89 CAD
22,0 .866 2168 MSB 22-18 18,2 .71 24,1 .95 11,5 .45
25,0 .984 2146 MSB 25-19 19,0 .75 27,8 1.09 CAD
28,0 1.102 2188 MSB 28-24 24,0 .95 31,3 1.24
32,0 1.260 2148 MSB 32-26 26,0 1.02 34,9 1.38 CAD
34,2 1.347 2190 MSB 34-26 26,2 1.03 36,8 1.45

Standard color black. Consult Heyco for white and other colors.

QuickSpecs

Material   Nylon 6/6
Certifications ru Recognized under the Component Program of Underwriters’ Laboratories File E15331
csa Certified by the Canadian Standards Association File 8919
Flammability Rating   94V-2
Temperature Range   -.4°F (-18°C) to 221°F (105°C)
