Heyco® Open/Closed Bushings

Mounting Hole Diameter Range: .375" (9,5 mm) to 2.500" (63,5 mm)

Small Packs Available

  • Part Numbers and Specifications
  • Features
MOUNTING HOLE
DIAMETER
PART NO. DESCRIPTION PACKAGING PART DIMENSIONS CAD
Black BULK
(Std)
SMALL
PACK*

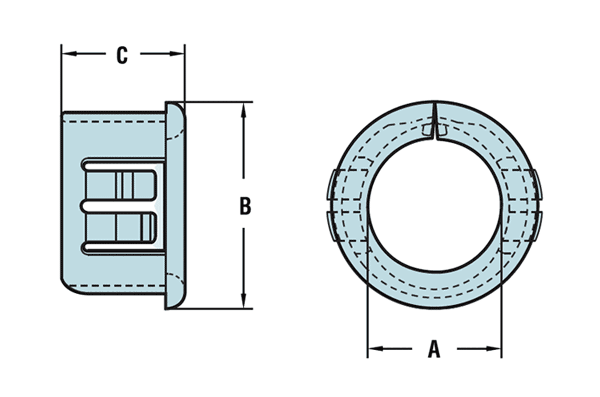

A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
in. mm. in. mm. in. mm. in. mm.

Multiple Locking Steps for Panel Thickness up to .125" (3,2 mm)

.375 9,5 2865 OCB 375 20000 100 .27 6,7 .42 10,7 .39 9,9 CAD
.437 11,1 2867 OCB 437 15000 100 .33 8,4 .50 12,7 .41 10,3 CAD
.500 12,7 2871 OCB 500 20000 100 .31 7,9 .56 14,3 CAD
.512 13,0 2875 OCB 512 20000 100 .35 9,0 .59 14,9 CAD
.562 14,3 2869 OCB 562 15000 100 .39 9,9 .64 16,3 CAD
.625 15,9 2872 OCB 625 8500 100 .45 11,1 .69 17,5 CAD
.650 16,5 2914 OCB 650 8500 100 .48 12,3 .73 18,6 CAD
.750 19,1 2873 OCB 750 10000 100 .55 12,7 .78 19,8 CAD
.866 22,0 2917 OCB 866 7500 100 .68 17,3 .98 24,8 CAD
.875 22,2 2874 OCB 875 7500 100 .67 14,3 .92 23,4 CAD
.984 25,0 2920 OCB 984 4000 100 .80 20,4 1.04 26,4 CAD
1.000 25,4 2878 OCB 1000 4000 50 .81 19,1 1.05 26,6 CAD
1.093 27,8 2879 OCB 1093 4000 50 .88 20,6 1.16 29,4 CAD
1.250 31,8 2881 OCB 1250 5000 50 1.05 25,8 1.34 34,1 CAD
1.375 34,9 2882 OCB 1375 2500 50 1.17 29,8 1.47 37,3 CAD
1.500 38,1 2883 OCB 1500 2500 25 1.25 31,8 1.58 40,1 .42 10,7 CAD
2.000 50,8 2900 OCB 2000 2000 25 1.73 43,9 2.12 53,9

Multiple Locking Steps for Panel Thickness up to .250" (6,4 mm)

2.500 63,5 2909 OCB 2.5 500 10 2.00 50,8 2.60 66,0 .72 18,3

Standard color black. Consult Heyco for white and other colors.

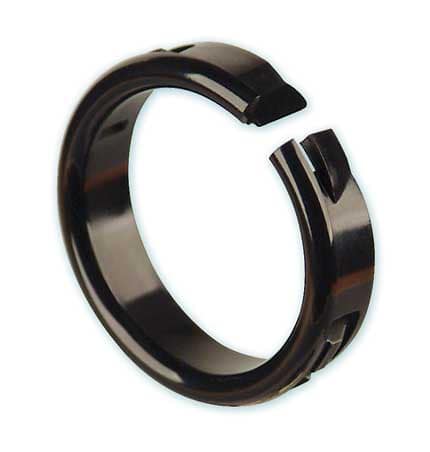

  • Split design allows side entry and encirclement of preassembled harnesses, power cords, capillary tubes or other assemblies that have segments larger than the bushing's ID.
  • May also be assembled into holes that already contain cable, wire or other filaments.
  • Fingertip pressure snap-locks the bushing into its mounting hole.
  • Locking fingers in fractional increments up to the maximum panel thickness.
  • Multiple sizes for use in mounting holes from .375" (9,5 mm) to 2.500" (63,5 mm).

QuickSpecs

Material   Nylon 6/6
Certifications ru Recognized under the Component Program of Underwriters' Laboratories File E15331
csa Certified by the Canadian Standards Association File 8919
Flammability Rating   94V-2
Temperature Range   -.4°F (-18°C) to 221°F (105°C)
