Heyco® Pry Out Plugs

Prong Finger Design

Mounting Hole Diameter Range: .187" (4,7 mm) to .375" (9,5 mm)

  • Part Numbers and Specifications
  • Features
WILL FIT THESE PANELS PART NO. DESCRIPTION HEAD
STYLE
PART DIMENSIONS
MOUNTING
HOLE DIAMETER
THICKNESS
RANGE

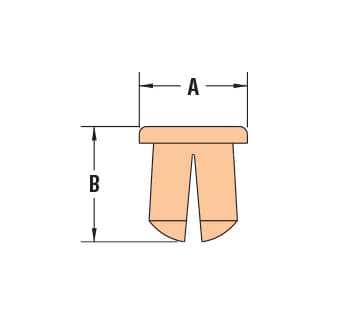

Black Natural A
Head
Diameter
B
Overall
Height
Minimum Maximum Minimum Maximum
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.

Clearance Fit for Panel Thickness Ranges Shown

.187 4,7 .192 4,9 .031 0,8 .062 1,6 12170 12171 PPL 187 Glossy .35 8,9 .18 4,6
.313 8,0 .318 8,1 .047 1,2 .156 4,0 12178 12179 PPL 313 Dome .58 14,7 .41 10,4
.375 9,5 .380 9,7 .093 2,4 .312 7,9 12182 12183 PPL 375 Glossy .49 12,4 .53 13,5

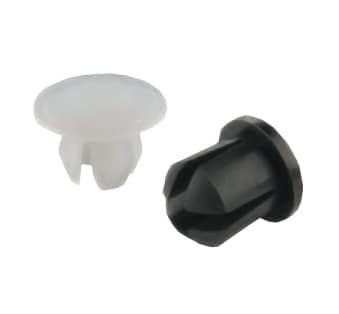

Standard color black and natural.
  • Flexible and tapered prongs on plug will snugly lock in place with fingertip pressure, but can be removed & reused.
  • Durable and non-conductive.
  • Excellent dust protection for electronic equipment.
  • Abrasion and vibration resistant.
  • May be used as temporary or permanent hole plugs.
  • Function as feet on small appliances.
  • May be used to close tube ends.

QuickSpecs

Material   Nylon 6/6
Flammability Rating   94V-2
Temperature Range   32°F (0°C) to 185°F (85°C)
