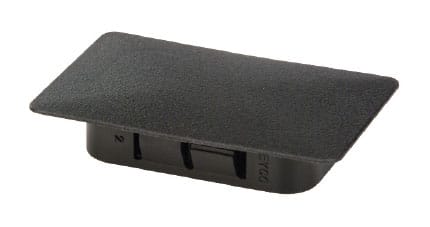

Heyco® Rectangular Blanking & Connector Port Plugs

Multiple Locking Steps for Various Panel Thicknesses

  • Part Numbers and Specifications
  • Features

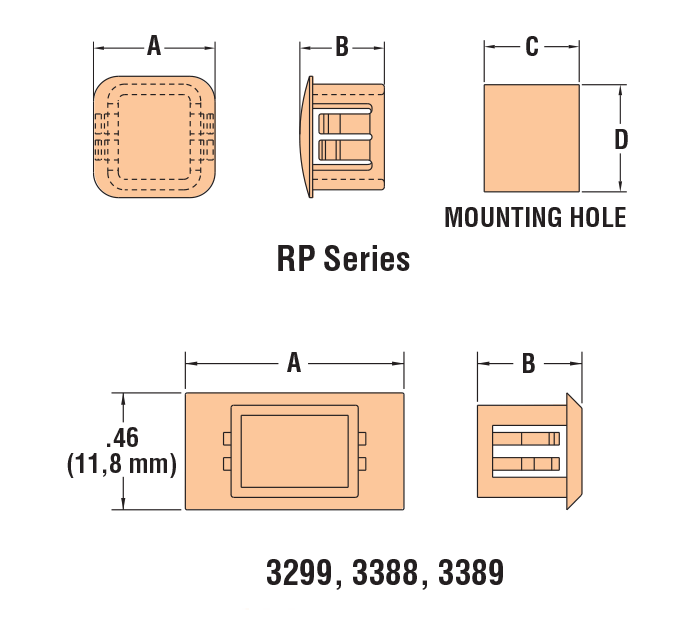

PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS CAD
Maximum
Thickness
Mounting Hole Black A
Head
Dimensions
B
Overall
Height
C
Length
D
Width
in. mm. in. mm. in. mm. in. mm. in. mm.

Rectangular Blanking Plugs

.03 0,64 .96 24,5 .96 24,5 13910 RP 245-245 1.06 x 1.06 26,9 x 26,9 .30 7,6
13911 RB 245-245* 1.05 x 1.05 26,7 x 26,7
.04 1,0 .27 6,9 .29 7,4 2512 RP 69-74 .37 x .37 9,4 x 9,4 .33 8,4
.10 2,5 .45 11,5 .51 13,9 1890 RP 115-130 .58 x .58 14,7 x 14,7 .40 10,2 CAD
.13 3,2 .94 23,8 1.65 42,0 2513 RP 239-419 2.17 x 1.38 55,1 x 35,0 .46 11,7
.16 4,0 .69 17,5 .69 17,5 1892 RP 175-175 .83 x .83 21,1 x 21,1 .47 11,9

Connector Port Plugs

.14 3,5 .37 9,5 .51 13,0 3299 RP 95-130-1 .63 16,0 .41 10,5
3388 RP 95-130 .87 22,0
1.02 26,0 3389 RP 95-260 1.38 35,0

Standard color black.
*Bushing version of the above plug.

  • Blank unused rectangular panel holes.
  • PN 1890 - UR Recognized under the Component Program of Underwriters’ Laboratories File E15331.
  • PN 1892 - UR Recognized under the Component Program of Underwriters’ Laboratories File E51579 and CSA Certified by the Canadian Standards Association File 8919.

QuickSpecs

Material   Nylon 6/6
Flammability Rating   94V-2
Temperature Range   -40°F (-40°C) to 221°F (105°C)
