Heyco® Rubber Grommets For Panels up to .063" (1,6 mm) Thick

For Panels: .063" (1,6 mm) Thick

  • Part Numbers and Specifications
  • Features
MOUNTING
HOLE

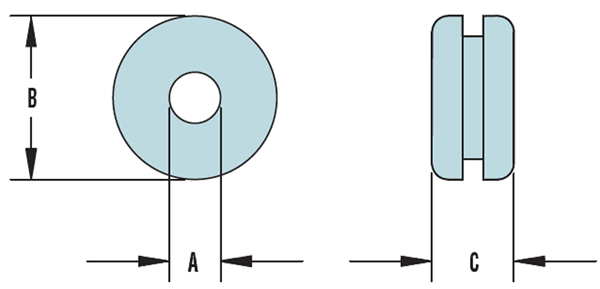

DIAMETER		 PART NO. DESCRIPTION MATERIAL PART DIMENSIONS
Black A
Inside
Diameter		 B
Head
Diameter		 C
Overall
Height
in. mm. in. mm. in. mm. in. mm.

For .063" (1,6 mm) Thick Panels
.250 6,4 G1004 RG 250-4-2 SBR .13 3,2 .34 8,7 .19 4,8
G1005 RG 250-5-2 SBR .16 4,0 .38 9,5
G1006 RG 250-5-2A SBR .16 4,0 .44 11,1 .38 9,5
.312 7,9 G1017 RG 312-6-2 SBR .19 4,8 .42 10,3 .22 5,6
G1018 RG 312-6-2A Nitrile .19 4,8 .44 11,1 .19 4,8
G1019 RG 312-6-2B SBR .19 4,8 .50 12,7 .25 6,4
G1026 RG 312-7-2 SBR .22 5,6 .44 11,1 .19 4,8
.375 9,5 G1037 RG 375-8-2 EPDM .25 6,4 .56 14,3 .25 6,4
G1042 RG 375-9-2 SBR .28 7,1
.437 11,1 G1052 RG 437-8-2 SBR .25 6,4 .63 15,9 .19 4,8
G1053 RG 437-8-2A Isoprene .25 6,4 .63 15,9 .31 8,0
G1061 RG 437-10-2 SBR .31 8,0 .63 15,9 .28 7,1
.500 12,7 G1089 RG 500-12-2 SBR .38 9,5 .63 15,9 .25 6,4
G1090 RG 500-12-2A SBR .38 9,5 .69 17,5 .28 7,1
.562 14,3 G1112 RG 562-10-2 SBR .31 8,0 .81 20,7 .31 8,0
G1123 RG 562-14-2 SBR .44 11,1 .75 19,1 .25 6,4
.625 15,9 G1130 RG 625-12-2 SBR .38 9,5 .88 22,2 .31 8,0
G1137 RG 625-16-2 SBR .50 12,7 .81 20,7 .28 7,1
.687 17,5 G1150 RG 687-14-2 SBR .44 11,1 .94 23,8 .31 8,0
G1151 RG 687-14-2A SBR .44 11,1 .94 23,8 .35 8,8
G1155 RG 687-16-2 SBR .50 12,7 .88 22,2 .25 6,4
.750 19,1 G1174 RG 750-12-2 SBR .38 9,5 1.00 25,4 .38 9,5
G1176 RG 750-16-2 SBR .50 12,7 .88 22,2 .25 6,4
G1177 RG 750-16-2A SBR .50 12,7 1.00 25,4
.812 20,6 G1192 RG 812-16-2 SBR .50 12,7 1.06 27,0 .31 8,0
G1197 RG 812-18-2 SBR .56 14,3
.875 22,2 G1208 RG 875-10-2 SBR .31 8,0 1.38 34,9 .25 6,4
G1215 RG 875-20-2 SBR .63 15,9 1.13 28,6 .31 8,0
1.000 25,4 G1242 RG 1000-12-2 SBR .38 9,5 1.25 31,8 .25 6,4
G1246 RG 1000-16-2 SBR .50 12,7
G1252 RG 1000-22-2 SBR .69 17,5 1.31 33,4 .38 9,5
G1258 RG 1000-24-2 SBR .75 19,1 1.25 31,8 .30 7,5
1.062 27,0 G1269 RG 1062-24-2 SBR .75 19,1 1.38 34,9 .38 9,5
1.250 31,8 G1290 RG 1250-16-2 SBR .50 12,7 1.50 38,1 .25 6,4
G1294 RG 1250-20-2 SBR .63 15,9
G1298 RG 1250-24-2 SBR .75 19,1 1.63 41,3
G1303 RG 1250-28-2 SBR .88 22,2 1.63 41,3 .44 11,1
G1311 RG 1250-32-2 SBR 1.00 25,4 1.56 39,7 .31 8,0
1.375 34,9 G1320 RG 1375-32-2 SBR 1.00 25,4 1.75 44,5 .44 11,1
1.500 38,1 G1347 RG 1500-36-2 SBR 1.13 28,6 1.88 47,6 .38 9,5
G1349 RG 1500-40-2 Nitrile 1.25 31,8 1.88 47,6 .34 8,7

Standard color black.

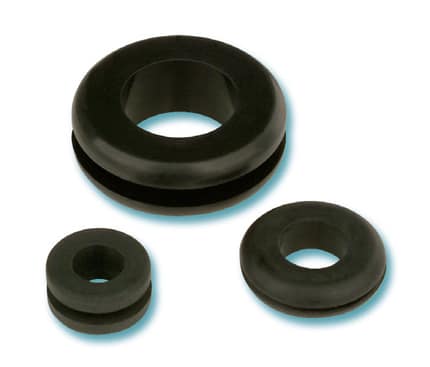

  • Used to protect through holes. Help eliminate sharp edges so your wires are protected and add aesthetic value to your application.
  • 115 sizes available that will accommodate mounting holes ranging from .250" (6,4 mm) to holes as large as 2.375" (60,3 mm) diameter and panel thicknesses from .063" (1,6 mm) to .188" (4,8 mm).
  • Rubber grommets are constructed of SBR (unless otherwise noted) with an operating temperature range of -40°F (-40°C) to 221°F (105°C).
  • SBR grommets have good water resistant characteristics and are suitable for most moderate chemicals and wet or dry organic acids.
  • Provide vibration dampening.

QuickSpecs

Material SBR, Nitrile, EPDM, or Isoprene
Temperature Range -40°F (-40°C) to 221°F (105°C)
