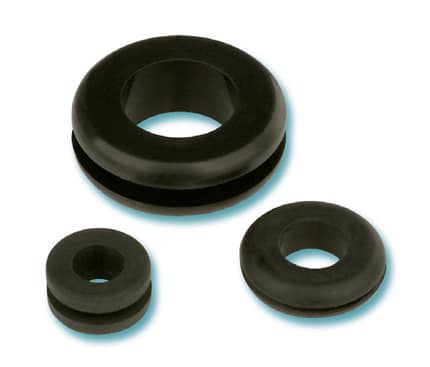

Heyco® Rubber Grommets

For Panels .125" (3,2 mm) to .188" (4,8 mm) Thick

  • Part Numbers and Specifications
  • Features
MOUNTING
HOLE

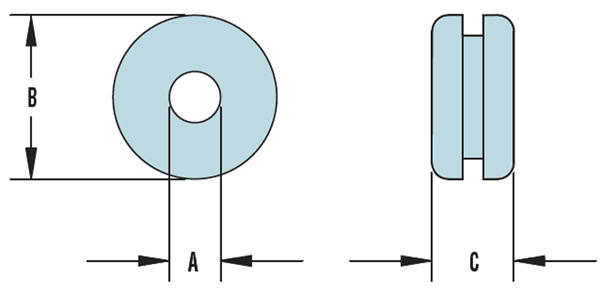

DIAMETER		 PART NO. DESCRIPTION MATERIAL PART DIMENSIONS
Black A
Inside
Diameter		 B
Head
Diameter		 C
Overall
Height
in. mm. in. mm. in. mm. in. mm.

For .125˝ (3,2 mm) Thick Panels (continued)
1.375 34,9 G1322 RG 1375-32-4 SBR 1.00 25,4 1.75 44,5 .50 12,7
1.500 38,1 G1350 RG 1500-40-4 SBR 1.25 31,8 1.88 47,6 .41 10,3
1.625 41,3 G1363 RG 1625-42-4 SBR 1.31 33,4 2.00 50,8 .44 11,1
G1364 RG 1625-44-4 SBR 1.38 34,9 1.88 47,6 .41 10,3
1.750 44,5 G1371 RG 1750-48-4 SBR 1.50 38,1 2.13 54,0 .50 12,7
2.000 50,8 G1392 RG 2000-56-4 SBR 1.75 44,5 2.38 60,3 .38 9,5
2.500 63,5 G1423 RG 2.5-68-4 SBR 2.13 54,0 2.88 73,0 .44 11,1

For .156˝ (4,0 mm) Thick Panels
.500 12,7 G1094 RG 500-12-5 SBR .38 9,5 .69 17,5 .31 8,0
.750 19,1 G1181 RG 750-16-5 SBR .50 12,7 .94 23,8 .41 10,3
1.500 38,1 G1348 RG 1500-38-5 SBR 1.19 30,2 1.75 44,5

For .188˝ (4,8 mm) Thick Panels
.312 7,9 G1022 RG 312-6-6 SBR .19 4,8 .44 11,8 .31 8,0
.375 9,5 G1034 RG 375-6-6 SBR .19 4,8 .63 15,9 .38 9,5
.437 11,1 G1057 RG 437-8-6 SBR .25 6,4 .63 15,9 .31 8,0
.562 14,3 G1110 RG 562-6-6 Nitrile .19 4,8 .75 19,1 .31 8,0
G1115 RG 562-10-6 SBR .31 8,0 .81 20,7 .38 9,5
G1116 RG 562-10-6A SBR .31 8,0 .81 20,7 .44 11,1
G1120 RG 562-12-6 SBR .38 9,5 .81 20,7 .38 9,5
.625 15,9 G1133 RG 625-12-6 SBR .38 9,5 .88 22,2 .44 11,1
G1135 RG 625-13-6 Nitrile .40 10,2 1.10 27,9
.687 17,5 G1153 RG 687-14-6 SBR .44 11,1 .94 23,8
.750 19,1 G1172 RG 750-10-6 SBR .31 8,0 1.00 25,4
.812 20,6 G1194 RG 812-16-6 SBR .50 12,7 1.06 27,0
G1199 RG 812-18-6 SBR .56 14,3
.875 22,2 G1213 RG 875-18-6 SBR .56 14,3 1.06 27,0
G1219 RG 875-20-6 SBR .63 15,9 1.13 28,6
1.000 25,4 G1256 RG 1000-22-6 SBR .69 17,5 1.31 33,4 .50 12,7
G1261 RG 1000-24-6 SBR .75 19,1 1.25 31,8 .56 14,3
1.062 27,0 G1272 RG 1062-24-6 SBR .75 19,1 1.38 34,9 .50 12,7
1.250 31,8 G1306 RG 1250-28-6 SBR .88 22,2 1.63 41,3 .56 14,3
G1312 RG 1250-32-6 SBR 1.00 25,4 1.50 38,1 .44 11,1
1.375 34,9 G1323 RG 1375-32-6 SBR 1.00 25,4 1.75 44,5 .56 14,3
G1329 RG 1375-36-6 SBR 1.13 28,6 1.88 47,6 .50 12,7
1.500 38,1 G1351 RG 1500-40-6 EPDM 1.25 31,8 2.00 50,8 .63 15,9
1.750 44,5 G1372 RG 1750-48-6 SBR 1.50 38,1 2.13 54,0 .56 14,3
2.000 50,8 G1390 RG 2000-52-6 SBR 1.63 41,3 2.25 57,2 .75 19,1
2.200 55,9 G1404 RG 2.200-64-6 SBR 2.00 50,8 2.75 69,9 .56 14,2
2.375 60,3 G1414 RG 2.375-64-6 PVC 2.00 50,8 2.75 69,9

Standard color black.

  • Used to protect through holes. Help eliminate sharp edges so your wires are protected and add aesthetic value to your application.
  • 115 sizes available that will accommodate mounting holes ranging from .250" (6,4 mm) to holes as large as 2.375" (60,3 mm) diameter and panel thicknesses from .063" (1,6 mm) to .188" (4,8 mm).
  • Rubber grommets are constructed of SBR (unless otherwise noted) with an operating temperature range of -40°F (-40°C) to 221°F (105°C).
  • SBR grommets have good water resistant characteristics and are suitable for most moderate chemicals and wet or dry organic acids.
  • Provide vibration dampening.

QuickSpecs

Material SBR, Nitrile, EPDM, or PVC
Temperature Range -40°F (-40°C) to 221°F (105°C)
