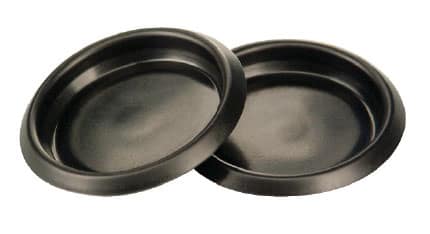

Heyco® LDPE Sheet Metal Plugs - Recessed Head

For Panel Thicknesses from .02˝ (0,5 mm) to .18˝ (4,6 mm)
Mounting Hole Diameter Range: .18˝ (4,6 mm) to 3.00˝ (76,2 mm)

  • Part Numbers and Specifications
  • Features
PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS
Thickness Range Mounting Hole
Diameter Range
Black A
Head
Diameter
B
Bottom
Diameter
C
Overall
Height
in. mm. in. mm. in. mm. in. mm. in. mm.

Recessed Head - for Panel Thicknesses from .02" (0,5 mm) to .18" (4,6 mm)

.02 -10 0,51-2,54 .37-.39 9,4-9,9 9610 SMP R-375 .75 19,1 .41 10,4 .31 7,9
.02-.07 0,51-1,78 .50-.52 12,7-13,2 9611 SMP R-500 .85 21,6 .55 14,0 .29 7,4
.02-.14 0,51-3,56 .73-.76 18,5-19,3 9614 SMP R-750 1.16 29,5 .79 20,1 .34 8,6
.02-.07 0,51-1,78 .79-.82 20,1-20,8 9615 SMP R-812 1.15 29,2 .85 21,6 .29 7,4
.02-.10 0,51-2,54 .87-.90 22,1-22,9 9616 SMP R-875 1.23 31,2 .93 23,6 .35 8,9
.99-1.02 25,2-25,9 9618 SMP R-1000 1.35 34,3 1.05 26,7
1.04-1.07 26,4-27,2 9619 SMP R-1062 1.40 35,6 1.10 27,9
1.09-1.12 27,7-28,5 9620 SMP R-1093 1.47 37,3 1.16 29,5
.02-.18 0,51-4,57 1.10-1.15 27,9-29,2 9621 SMP R-1125 1.53 38,9 1.18 30,0 .43 10,9
.01-.10 0,25-2,54 1.23-1.27 31,2-32,3 9622 SMP R-1250 1.60 40,6 1.30 33,0 .35 8,9
1.30-1.34 33,0-34,0 9623 SMP R-1312 1.67 42,4 1.36 34,5
.02-.10 0,51-2,54 1.36-1.40 34,6-35,6 9624 SMP R-1375 1.73 43,9 1.43 36,3
1.48-1.52 37,6-38,6 9625 SMP R-1500 1.85 47,0 1.55 39,4
.03-.10 0,76-2,54 1.59-1.65 40,4-41,9 9627 SMP R-1625 2.00 50,8 1.68 42,7 .36 9,1
.02-.10 0,51-2,54 1.75 44,5 9628 SMP R-1750 2.13 54,1 1.80 45,7 .35 8,9
1.85-1.90 47,0-48,3 9631 SMP R-1875 2.24 56,9 1.93 49,0
.02-.10 0,51-2,54 1.97-2.02 50,0-51,3 9632 SMP R-2000 2.35 59,7 2.05 52,1 .36 9,1
2.50 63,5 9633 SMP R-2.5 3.00 76,2 2.57 65,3 .38 9,7
3.00 76,2 9635 SMP R-3.0 3.56 90,4 3.06 77,7 .41 10,4

Standard color black.
* Molded from EVA.

  • Close unneeded sheet metal panel holes in equipment such as automobile bodies, tanks, refrigeration units, etc.
  • Recessed button head style.
  • Retaining bead snaps easily into place.
  • For easier to install Sheet Metal Plugs made from flexible Santoprene, see Heyco Metric Ergonomic Plugs.

QuickSpecs

Material EVA* and LDPE
Temperature Range -98°F (68°C) to 140°F (60°C) (EVA)
-94°F (70°C) to 150°F (66°C) (LDPE)
