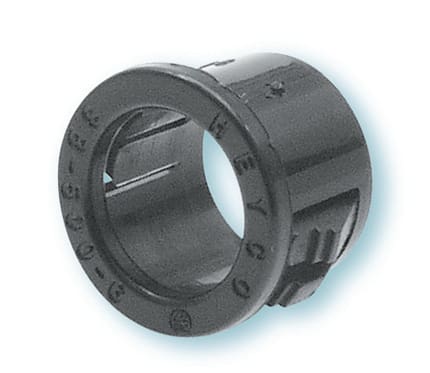

Heyco® Snap Bushings

Mounting Hole Diameter Range: .250" (6,4 mm) to .875" (22,2 mm)

  • Part Numbers and Specifications
  • Features
MOUNTING HOLE
DIAMETER

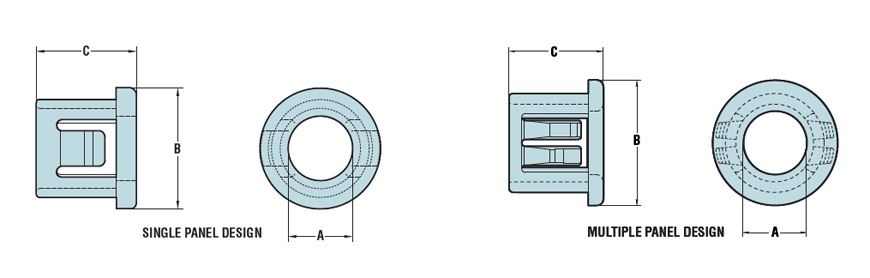

PART NO. DESCRIPTION PART DIMENSIONS CAD
Black White A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
in. mm. in. mm. in. mm. in. mm.

Single Locking Step for Panel Thickness up to .040" (1,0 mm)

.250 6,4 2003 2004 SB 250-040 .13 3,2 .31 7,9 .31 7,9 CAD

Single Locking Step for Panel Thickness up to .062" (1,6 mm)

.250 6,4 2000 2001 SB 250-2 .14 3,6 .31 7,9 .31 7,9 CAD
.312 7,9 2010 2011 SB 312-3 .19 4,8 .38 9,5 CAD

Multiple Locking Steps for Panel Thickness up to .125" (3,2 mm)

.375 9,5 2020 2021 SB 375-3 .19 4,8 .47 11,9 .41 10,3 CAD
2030 2031 SB 375-4 .25 6,4 CAD
.437 11,1 2042 2037 SB 437-243 .24 6,2 .53 13,5 CAD
2038 2039 SB 437-4 .27 6,8 CAD
2043 2044 SB 437-5 .31 7,9 CAD
.500 12,7 2058 2059 SB 500-4 .25 6,4 .57 14,5 CAD
2049 2050 SB 500-5 .31 7,9 CAD
2053 2054 SB 500-6 .39 9,9 CAD
.562 14,3 2060 2061 SB 562-5 .31 7,9 .66 16,7 CAD
2063 2064 SB 562-6 .39 9,9 CAD
2066 2067 SB 562-7 .44 11,1 CAD
.625 15,9 2075 2078 SB 625-4 .25 6,4 .72 18,2 CAD
2070 2071 SB 625-7 .44 11,1 CAD
2073 2074 SB 625-8 .50 12,7 CAD
.687 17,4 2083 2084 SB 687-8 .50 12,7 .78 19,8 CAD
2086 2087 SB 687-9 .56 14,3 CAD
.750 19,1 2090 2091 SB 750-6 .39 9,9 .85 21,6 CAD
2092 2099 SB 750-8 .50 12,7 CAD
2093 2094 SB 750-9 .56 14,3 CAD
2096 2097 SB 750-10 .61 15,5 CAD
.812 20,6 2100 2101 SB 812-9 .56 14,3 .89 22,6 CAD
2103 2104 SB 812-10 .63 15,9 CAD
.875 22,2 2110 2111 SB 875-6 .38 9,5 .95 24,2 .45 11,5 CAD
2113 2114 SB 875-7 .44 11,1 CAD
2116 2117 SB 875-8 .50 12,7 CAD
2120 2121 SB 875-9 .56 14,3 CAD
2123 2124 SB 875-10 .63 15,9 CAD
2126 2127 SB 875-11 .69 17,5 CAD

Standard colors black and white. Consult Heyco for other colors.

  • Convert raw-edged holes to smooth, neat, insulated holes.
  • Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
  • Locking fingers snap into holes with fingertip pressure.
  • Locking fingers in fractional increments up to the maximum panel thickness.
  • Withstand a push back force of 35 pounds.
  • Available in multiple sizes for use in .250" (6,4 mm) to 6.00" (152,4 mm) diameter holes.
  • We offer the following brass-colored parts for lamp and lighting applications:
    Part No. 2012, SB 312-3 Brass
    Part No. 2033, SB 375-4 Brass
    Part No. 2041, SB 437-4 Brass

QuickSpecs

Material   Nylon 6/6
Certifications ru Recognized under the Component Program of Underwriters' Laboratories File E15331
csa Certified by the Canadian Standards Association File 8919
Flammability Rating   94V-2
Temperature Range   -.4°F (-18°C) to 221°F (105°C)
