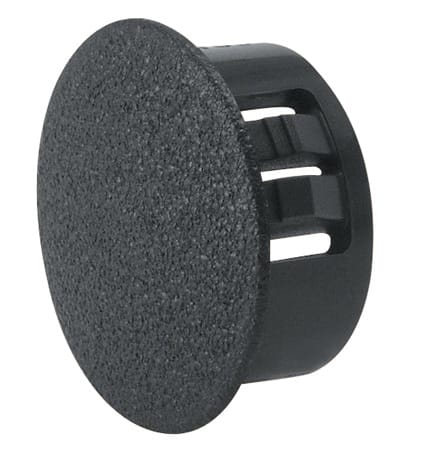

Heyco® V-0 Knock-Out Seals

Multiple Locking Steps for Panel Thickness up to .125" (3,2 mm)

Mounting Hole Diameter Range: 1/2" to 1-1/2" Electrical Knock-outs (.875" to 2.000" nominal)

  • Part Numbers and Specifications
  • Features
MOUNTING HOLE
DIAMETER
TRADE
SIZE
PART NO. DESCRIPTION PART DIMENSIONS CAD
Black A
Head
Diameter
B
Overall
Height
in. mm. in. mm. in. mm.
.875 22,2 1/2 2706 HFP 875 1.02 25,8 .45 11,5 CAD
1.093 27,8 3/4 2729 HFP 1093 1.22 31,0 CAD
1.375 34,9 1 2759 HFP 1375 1.50 38,1 CAD
1.750 44,5 1-1/4 2779 HFP 1750 1.91 48,4 CAD
2.000 50,8 1-1/2 2789 HFP 2000 2.16 54,9 CAD

Standard color black.

  • Molded from a nylon material, which in the event of a fire will not burn and will not product toxic gases.
    Also formulated for sunlight resistance.

QuickSpecs

Material   Nylon 6/6
Certifications ru Recognized under the Component Program of Underwriters' Laboratories File E51579
csa Certified by the Canadian Standards Association File 8919
Flammability Rating   94V-0
Temperature Range   -40°F (-40°C) to 221°F (105°C)
