Heyco®-Tite Brass
Liquid Tight Clamping Cordgrips
Metric Hubs
The Ultimate in Liquid Tight Strain Relief Protection
- Part Numbers and Specifications
- Features
| CABLE DIA. RANGE | PART NO. | Thread Size |
SEALING INSERT PIECES |

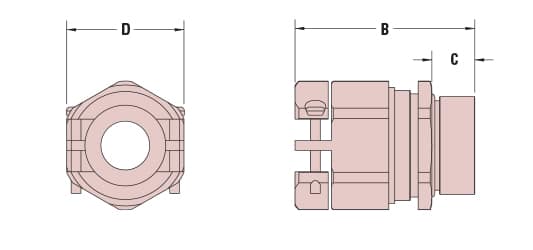

PART DIMENSIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A Clearance Hole Dia. |
B Max. O.A. Length |
C Thread Length |
D Wrenching Flat Size |
|||||||||||
| Minimum | Maximum | |||||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||
Standard Threads |
||||||||||||||
| .118 | 3,0 | .157 | 4,0 | 14850 | M10 x 1,5 | 1 | .394 | 10,0 | 1.34 | 34,0 | .39 | 10,0 | .51/.63 | 13/16 |
| .157 | 4,0 | .236 | 6,0 | 14851 | ||||||||||
| .197 | 5,0 | .256 | 6,5 | 14852 | M12 x 1,5 | 1 | .472 | 12,0 | 1.42 | 36,0 | .39 | 10,0 | .59/.63 | 15/16 |
| .256 | 6,5 | .315 | 8,0 | 14853 | ||||||||||
| .236 | 6,0 | .413 | 10,5 | 14854 | M16 x 1,5 | 2 | .630 | 16,0 | 1.57 | 40,0 | .39 | 10,0 | .71/.75 | 18/19 |
| .315 | 8,0 | .591 | 15,0 | 14855 | M20 x 1,5 | 2 | .787 | 20,0 | 1.61 | 41,0 | .39 | 10,0 | .94 | 24 |
| .492 | 12,5 | .807 | 20,5 | 14856 | M25 x 1,5 | 2 | .984 | 25,0 | 1.81 | 46,0 | .43 | 11,0 | 1.18 | 30 |
| .669 | 17,0 | 1.004 | 25,5 | 14857 | M32 x 1,5 | 2 | 1.260 | 32,0 | 2.09 | 53,0 | .51 | 13,0 | 1.42 | 36 |
| .945 | 24,0 | 1.299 | 33,0 | 14858 | M40 x 1,5 | 2 | 1.575 | 40,0 | 2.24 | 57,0 | .51 | 13,0 | 1.81 | 46 |
| 1.299 | 33,0 | 1.654 | 42,0 | 14859 | M50 x 1,5 | 2 | 1.968 | 50,0 | 2.48 | 63,0 | .55 | 14,0 | 2.17 | 55 |
| 1.575 | 40,0 | 2.047 | 52,0 | 14860 | M63 x 1,5 | 2 | 2.480 | 63,0 | 2.72 | 69,0 | .55 | 14,0 | 2.76 | 70 |
| 1.968 | 50,0 | 2.480 | 63,0 | 14861 | M75 x 1,5 | 2 | 2.953 | 75,0 | 2.80 | 71,0 | .59 | 15,0 | 3.15 | 80 |
Short Threads |
||||||||||||||
| .118 | 3,0 | .157 | 4,0 | 14862 | M10 x 1,5 | 1 | .394 | 10,0 | 1.14 | 29,0 | .20 | 5,0 | .51/.63 | 13/16 |
| .157 | 4,0 | .236 | 6,0 | 14863 | ||||||||||
| .197 | 5,0 | .256 | 6,5 | 14864 | M12 x 1,5 | 1 | .472 | 12,0 | 1.22 | 31,0 | .20 | 5,0 | .59/.63 | 15/16 |
| .256 | 6,5 | .315 | 8,0 | 14865 | ||||||||||
| .236 | 6,0 | .413 | 10,5 | 14866 | M16 x 1,5 | 2 | .630 | 16,0 | 1.38 | 35,0 | .20 | 5,0 | .71/.75 | 18/19 |
| .315 | 8,0 | .591 | 15,0 | 14867 | M20 x 1,5 | 2 | .787 | 20,0 | 1.46 | 37,0 | .24 | 6,0 | .94 | 24 |
| .492 | 12,5 | .807 | 20,5 | 14868 | M25 x 1,5 | 2 | .984 | 25,0 | 1.65 | 42,0 | .28 | 7,0 | 1.18 | 30 |
| .669 | 17,0 | 1.004 | 25,5 | 14869 | M32 x 1,5 | 2 | 1.260 | 32,0 | 1.89 | 48,0 | .31 | 8,0 | 1.42 | 36 |
| .945 | 24,0 | 1.299 | 33,0 | 14870 | M40 x 1,5 | 2 | 1.575 | 40,0 | 2.05 | 52,0 | .31 | 8,0 | 1.81 | 46 |
| 1.299 | 33,0 | 1.654 | 42,0 | 14871 | M50 x 1,5 | 2 | 1.968 | 50,0 | 2.28 | 58,0 | .35 | 9,0 | 2.17 | 55 |
| 1.575 | 40,0 | 2.047 | 52,0 | 14872 | M63 x 1,5 | 2 | 2.480 | 63,0 | 2.56 | 65,0 | .39 | 10,0 | 2.76 | 70 |
| 1.968 | 50,0 | 2.480 | 63,0 | 14873 | M75 x 1,5 | 2 | 2.953 | 75,0 | 2.64 | 67,0 | .43 | 11,0 | 3.15 | 80 |
- Extra pull-out resistance for applications requiring maximum strain relief in addition to liquid tight sealing.
- IP 68 and IP 69 rated.
- For non-liquid tight Heyco Brass Clamping Strain Reliefs, click here.
- Available by special order only.
- Locknuts not included. For metal locknut specifications or to order locknuts separately, see: NPT, PG, or Metric.
QuickSpecs
| Material | Nickel-Plated Brass Body w/TPE Seal, NBR O-ring and Stainless Steel Screws | |
|---|---|---|
| Certifications |  |
Marks License #40019686 |
| Temperature Range | -40°F (-40°C) to 212°F (100°C) | |
| IP Rating | IP 68, IP 69K |
