Heyco® Compression Cable Clamps
- Part Numbers and Specifications
- Features

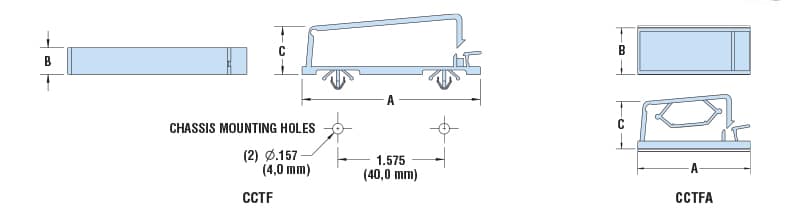

| WIRE CAPACITY | Pin Count | PART NO. | DESCRIPTION | PART DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VOLUME | Natural | A Length |
B Width |
C Height |
||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||

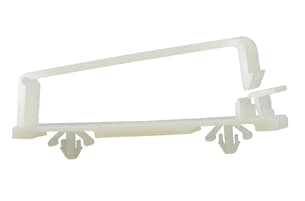

Double Arrowhead Mount |
||||||||||
| 2.11 x .45 | 53,5 x 11.5 | 40 | 12121 | CCTF-40A | 2.64 | 67,0 | .39 | 10,0 | .63 | 16,0 |

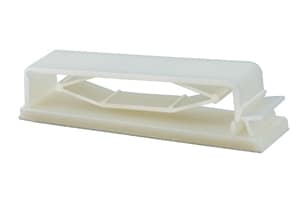

Adhesive Back Mount |
||||||||||
| 1.26 x .45 | 32,0 x 11,5 | 30 | 12124 | CCTFA-30 | 1.77 | 45,0 | .73 | 18,6 | .62 | 15,8 |
| 2.57 x .41 | 65,2 x 10,5 | 50 | 12126 | CCTFA-50 | 3.08 | 78,3 | .74 | 18,8 | ||
Standard color natural.
- Hinged style allows for easy addition or removal of cables.
- Secures cable into place with easy installation.
- Will not strain cable.
QuickSpecs
| Material | Nylon 6/6 |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | 32°F (0°C) to 185°F (85°C) |
