Heyco® Edge Clips

Unassembled or Assembled with 8″ Cable Tie

  • Part Numbers and Specifications
  • Features
EDGE CLIP ONLY EDGE CLIP & PRE-ASSEMBLED CABLE TIE ASSEMBLED NYTYE CABLE TIE
Fixing Part No.
Black		 Cable Tie
Orientation		 Part No.
UV Black
Cable Tie		 Part No.
Nylon 12 Black
Cable Tie		 Tensile
Strength		 Max. Bundle
Diameter		 Overall
Length
Lbs. N in. mm. in. mm.

For Panels from .04" (1,0 mm) to .12" (3,0 mm) Thick
Side 15200* Parallel 15202 15232 50 222 1.77 45,0 7.87 200
Perpendicular 15203 15233
Top 15201* Parallel 15204 15234
Perpendicular 15205 15235

For Panels from .12" (3,0mm) to .24" (6,0mm) Thick
Side 15212 Parallel 15208 15238 50 222 1.77 45,0 7.87 200
15206 Perpendicular 15209 15239
Top 15213 Parallel 15210 15240
15207 Perpendicular 15211 15241

Standard color black. For alternate materials or lengths, please contact Heyco.
*Bi-directional mounting platform allows for multiple orientations without the need for multiple SKUs.

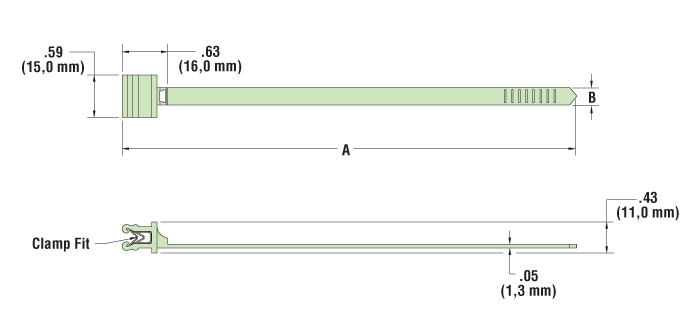

Edge Clips Drawing

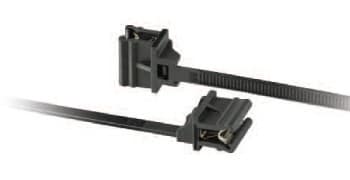

Edge Clips
  • Steel clip provides high panel retention forces, while requiring low insertion force.
  • Plastic housing ensures easy, ergonomic installation.
  • Ideal solution for applications where holes are not available or temperatures are too extreme for adhesive solutions.
  • Parallel orientation means the cable tie is parallel to the fixing edge.
  • Perpendicular orientation means the cable tie is perpendicular to the fixing edge.
  • Edge Clip housing is constructed from a Nylon 6/6 UV Resistant & Heat Stabilized material and supplied either by itself, with a Nylon 6/6 cable tie or Nylon 12 cable tie making them suitable for multiple applications/environments.

QuickSpecs

Material Cable Tie: Nylon 6/6 or Nylon 12 Weather Resistant
Edge Clip: Nylon 6/6 UV Resistant and Heat stabilized
Insert: Post nickel plated steel
Flammability Rating Nylon 6/6: 94V-2
Nylon 12: UL94HB
Temperature Range Cable Tie (Nylon 6/6): -40°F (-40°C) to 185°F (85°C)
Cable Tie (Nylon 12): -40°F (-40°C) to 248°F (120°C)
Edge Clip: -.04°F (-18°C) to 221°F (105°C)
