Download Datasheet

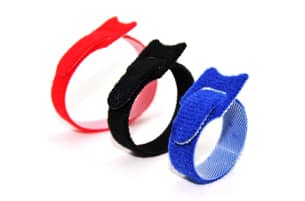

Heyco® Hook and Loop - Ties

  • Part Numbers and Specifications
  • Features
PART NO. DESCRIPTION PART DIMENSIONS
A
Length		 B
Width
Black White Gray Orange Yellow Red Blue Green
in. mm. in. mm.
16005 16006 16007 16008 16009 16010 16011 16012 HLT-1/2-6 6.0 152 0.50 12,7
16021 16022 16023 16024 16025 16026 16027 16028 HLT-1/2-8 8.0 203
16037 16038 16039 16040 16041 16042 16043 16044 HLT-1/2-10 10.0 254
16053 16054 16055 16056 16057 16058 16059 16060 HLT-1/2-12 12.0 305
16069 16070 16071 16072 16073 16074 16075 16076 HLT-3/4-6 6.0 152 0.75 19
16085 16086 16087 16088 16089 16090 16091 16092 HLT-3/4-8 8.0 203
16101 16102 16103 16104 16105 16106 16107 16108 HLT-3/4-10 10.0 254
16117 16118 16119 16120 16121 16122 16123 16124 HLT-3/4-12 12.0 305
16133 16134 16135 16136 16137 16138 16139 16140 HLT-3/4-15 15.0 381
16149 16150 16151 16152 16153 16154 16155 16156 HLT-3/4-18 18.0 457
16165 16166 16167 16168 16169 16170 16171 16172 HLT-3/4-24 24.0 610

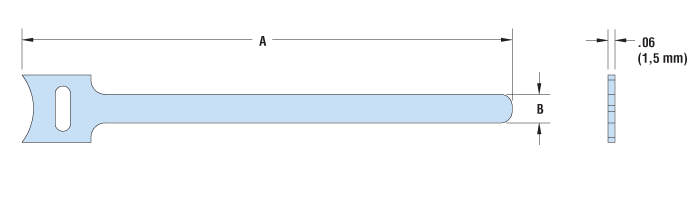

Heyco Hook Loop Ties Ties Drawing
Heyco Hook and Loop Ties
  • Reusable
  • Easy application and bundle of cables

QuickSpecs

Material Nylon
Peel Durability >5000 Cycles
Temperature Range -4°F (-20°C) to 176°F (80°C)
