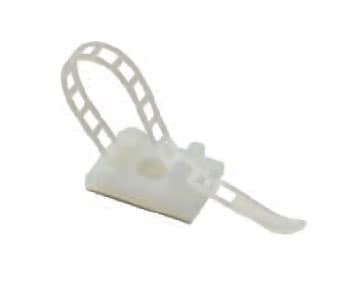

HEYClip™ Ladder Cable Holders
Adhesive Back Mount
- Part Numbers and Specifications
- Features
| MAXIMUM BUNDLE DIAMETER |
PART NO. Natural |

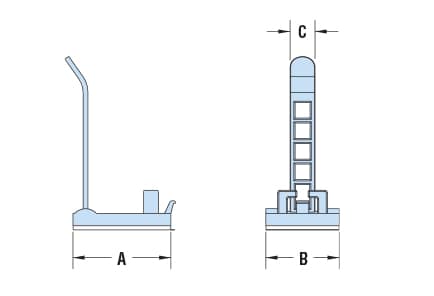

DESCRIPTION | PART DIMENSIONS | MOUNTING HOLE DIA. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A Length |
B Width |
C Ladder Width |
|||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||
| .47 | 12,0 | 12360 | CH LAD-047 | .79 | 20,0 | .59 | 15,0 | .20 | 5,0 | .133 | 3,4 |
| .77 | 19,5 | 12361 | CH LAD-077 | ||||||||
| .51 | 13,0 | 12362 | CH LAD-051 | .98 | 25,0 | .71 | 18,0 | .31 | 8,0 | .138 | 3,5 |
| .67 | 17,0 | 12363 | CH LAD-067 | ||||||||
| .73 | 18,5 | 12364 | CH LAD-073 | ||||||||
| .87 | 22,0 | 12365 | CH LAD-087 | 1.20 | 30,5 | 83 | 21,0 | .47 | 12,0 | ||
| 1.02 | 26,0 | 12367 | CH LAD-102 | ||||||||
Standard color natural.
- Adjustable design secures wire bundles.
- Applies simply to clean dry surface.
QuickSpecs
| Material | Nylon 6/6 |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | 32°F (0°C) to 185°F (85°C) |
