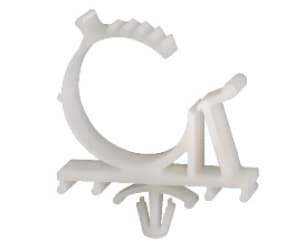

HEYClip™ Locking Releasable Wire Clips Adjustable

Adjustable

  • Part Numbers and Specifications
  • Features

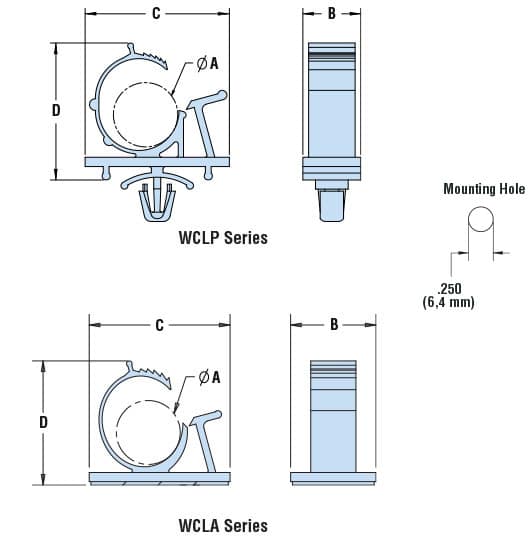

MAXIMUM BUNDLE DIAMETER RANGE
A
PART NO. DESCRIPTION OVERALL HEIGHT
D*
FOOTPRINT
B x C
Minimum Maximum Natural
in. mm. in. mm. in. mm. in. mm.

WCLP Series - Arrowhead Mount

.47 11,9 .55 14,0 4335 WCLP 562 1.17 29,8 .50 x 1.24 12,7 x 31,5
.58 14,7 .75 19,1 4336 WCLP 750 1.36 34,5 .50 X 1.48 12,7 Xx37,6

WCLA Series - Adhesive Mount**

.22 5,5 .26 6,5 4323 WCLA 258 .74 18,8 .65 x .85 16,5 x 21,6
.31 7,9 .41 10,3 4324 WCLA 406 .90 22,8 .75 x 1.00 19,1 x 25,4
.47 11,9 .56 14,3 4325 WCLA 562 1.12 28,5 .75 x 1.24 19,1 x 31,5
.58 14,7 .75 19,1 4326 WCLA 750 1.32 33,6 .75 x 1.50 19,1 x 38,1
.87 22,2 1.00 25,4 4327 WCLA 1000 1.78 45,3 1.00 x 1.97 25,4 x 50,1

Standard color natural.
*At maximum wire capacity.
**Adhesive-Back is 1/16" (1,6 mm) thick.


WCLP Series

  • Gather and route wires.
  • Adjust to diameter needed to bundle.
  • Push mount design allows for fast installation.

WCLA Series

  • Lock securely and easily. Re-open for routing changes.
  • Ratcheting clip holds bundle securely in place.
  • Good for high vibration applications. Once closed the clip will not open until the tab is released.

QuickSpecs

Material Nylon 6/6
Flammability Rating 94V-2
Temperature Range -40°F (-40°C) to 185°F (85°C)
