HEYClip™ Lockit™ Loops and Clips

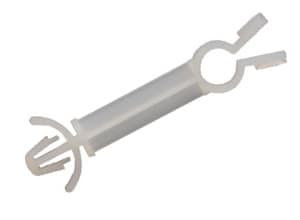

Standoff Lockit™ Clips - Arrowhead Mount

  • Part Numbers and Specifications
  • Features
MAXIMUM
BUNDLE
DIAMETER

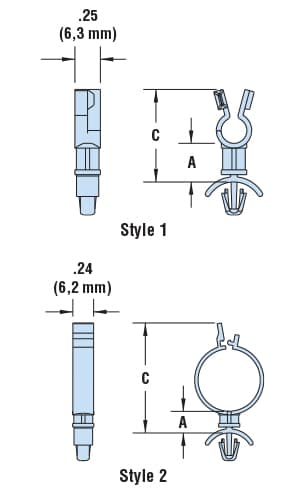

PART NO. DESCRIPTION SPACER
HEIGHT
A
OVERALL LENGTH
ABOVE PANEL
C
MOUNTING
HOLE
DIAMETER
STYLE
Natural
in. mm. in. mm. in. mm. in. mm.

PMLC Series

For Panels up to .06" (1,6 mm) thick

.25 6,4 4185 PMLC 25-19 .19 4,8 .72 18,3 .187 4,8 1
4186 PMLC 25-25 .25 6,4 .78 19,9
4187 PMLC 25-37 .37 9,5 .91 23,0
4188 PMLC 25-50 .50 12,7 1.03 26,2
4189 PMLC 25-63 .63 15,9 1.16 29,4
4190 PMLC 25-100 1.00 25,4 1.53 39,9


For Panels from .03" (0,8 mm) - .08" (2,00 mm) thick

.44 11,1 14185F PMLC 43-19 .19 4,8 .98 24,9 .187 4,8 1
14186F PMLC 43-25 .25 6,4 1.04 26,5
14187F PMLC 43-37 .37 9,5 1.17 29,6
14188F PMLC 43-50 .50 12,7 1.29 32,8
14189F PMLC 43-63 .63 15,9 1.42 36,0
14190F PMLC 43-100 1.00 25,4 1.79 45,5
.47 11,9 4345 PMLC 50-19 .19 4,8 .96 24,4 .187 4,8 2
4346 PMLC 50-25 .25 6,4 1.02 26,0
4347 PMLC 50-37 .37 9,5 1.15 29,1
4348 PMLC 50-50 .50 12,7 1.27 32,3
.73 18,5 4191 PMLC 73-19 .19 4,8 1.22 30,9 .187 4,8 2
4192 PMLC 73-25 .25 6,4 1.28 32,5
4193 PMLC 73-37 .37 9,5 1.40 35,6
4194 PMLC 73-50 .50 12,7 1.53 38,8


For Panels from .08" (2,0 mm) - .16" (4,0 mm) thick

.47 11,9 4366 PMLC 50-19-1 .19 4,8 .96 24,4 .187 4,8 2
4367 PMLC 50-25-1 .25 6,4 1.02 26,0
4368 PMLC 50-37-1 .37 9,5 1.15 29,1
4369 PMLC 50-50-1 .50 12,7 1.27 32,3
.73 18,5 4195 PMLC 73-19-1 .19 4,8 1.22 30,9 .187 4,8 2
4196 PMLC 73-25-1 .25 6,4 1.28 32,5
4197 PMLC 73-37-1 .37 9,5 1.40 35,6
4198 PMLC 73-50-1 .50 12,7 1.53 38,8

Standard color natural.

  • Locking ends click into place.
  • Part Description Key: PMLC XX-YY, where XX = Maximum Bundle Diameter (inches) and YY = Height Above Panel (inches).
  • PMLC 43-series molded from natural V-0 material.

QuickSpecs

Material Nylon 6/6
Flammability Rating 94V-2
Temperature Range 32°F (0°C) to 185°F (85°C)
