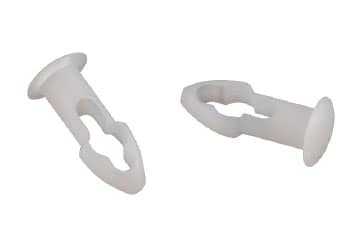

HEYClip™ Nylon Holster Clips
Mounting Hole Diameter/Assembled Panel Thickness Sequence
- Part Numbers and Specifications
- Features
| MOUNTING HOLE DIA. |
ASSEMBLED PANEL THICKNESS |

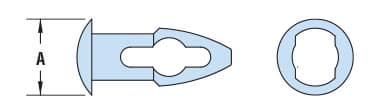

PART NO. | DESCRIPTION | HEAD DIAMETER | CAD | |||
|---|---|---|---|---|---|---|---|---|
| Natural | ||||||||
| in. | mm. | in. | mm. | in. | mm. | |||
HHC Series |
||||||||
.219 |
5,6 |
.093 | 2,3 | 4287 | HHC 09-22 | .34 | 8,6 |
 |
| .125 | 3,3 | 4289 | HHC 13-22 | |
||||
| .156 | 4,1 | 4292 | HHC 16-22 | |
||||
| .187 | 4,8 | 4294 | HHC 19-22 | |
||||
| .219 | 5,5 | 4295 | HHC 22-22 | |
||||
| .250 | 6,4 | 4296 | HHC 25-22 | |
||||
| .281 | 7,1 | 4297 | HHC 28-22 | |
||||
| .312 | 7,9 | 4298 | HHC 31-22 | |
||||
| .343 | 8,6 | 4299 | HHC 34-22 | |
||||
| .375 | 9,7 | 4322 | HHC 38-22 | |
||||
| .250 | 6,4 | .093 | 2,3 |
4288 | HHC 09-25 |
.50 |
12,7 |
|
| .156 | 4,1 | .250 | 6,4 | 4293 | HHC 25-16 | .31 | 7,9 | |
Standard color natural. Consult Heyco for black and other colors.
- Holster shaped interior allows the part to collapse more completely, for assembly with just fingertip pressure.
- Tapered, bullet-style point slides easily into any mounting hole.
- Angled panel locking section takes up slack to provide for a tight assembly.
- The design allows for a relatively large clip-diameter-to-hole-size ratio, resulting in higher retention force.
- Consult Heyco for other mounting hole and panel thickness variations.
QuickSpecs
| Material | Nylon 6/6 |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | 32°F (0°C) to 185°F (85°C) |
