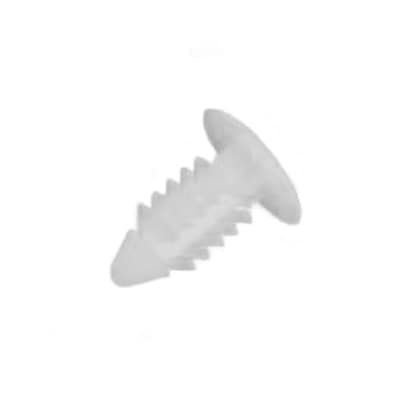

HEYClip™ Nylon Pawl Locks

  • Part Numbers and Specifications
  • Features
WILL FIT THESE PANELS PART NO. DESCRIPTION PART DIMENSIONS
MOUNTING HOLE DIA. ASSEMBLED
PANEL THICKNESS
A
Length
B
Head Height
C
Head Length
Min. Max.
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.
.250 6,4 .03 0,8 .29 7,4 10677B HPFP-1 BLACK .41 10,4 .08 2,0 .72 18,3
.16 4,0 .55 13,9 10676 HPL-1 NATURAL .63 15,9 .08 2,0 .50 12,7

QuickSpecs

Material Nylon 6/6
Flammability Rating 94V-2
Temperature Range -.4°F (-18°C) to 185°F (85°C)
