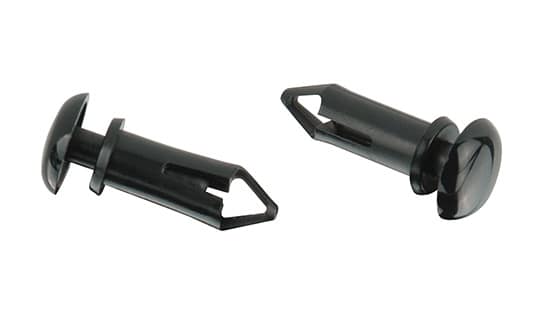

HEYClip™ Push Rivet-Arrows
- Part Numbers and Specifications
- Features
| WILL FIT THESE PANELS | PART NO. |

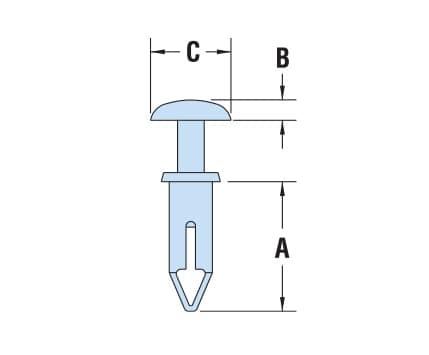

DESCRIPTION | PART DIMENSIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mounting Hole Dia. |
ASSEMBLED PANEL THICKNESS |
A Length |
B Head Height |
C Head Diameter |
|||||||||
| Min. | Max. | Black | in. | mm. | in. | mm. | in. | mm. | |||||
| in. | mm. | in. | mm. | in. | mm. | ||||||||
| .142 | 3,6 | .08 | 2,0 | .14 | 3,5 | 4400 | PRA 142-079 | .37 | 9,5 | .06 | 1,6 | .25 | 6,4 |
| .14 | 3,5 | .20 | 5,0 | 4401 | PRA 142-138 | .45 | 11,5 | ||||||
| .20 | 5,0 | .26 | 6,5 | 4402 | PRA 142-197 | .53 | 13,5 | ||||||
| .161 | 4,1 | .08 | 2,0 | .14 | 3,5 | 4403 | PRA 161-079 | .39 | 10,0 | .07 | 1,8 | .31 | 8,0 |
| .14 | 3,5 | .22 | 5,5 | 4404 | PRA 161-138 | .47 | 12,0 | ||||||
| .22 | 5,5 | .30 | 7,5 | 4405 | PRA 161-217 | .55 | 14,0 | ||||||
| .193 | 4,9 | .08 | 2,0 | .16 | 4,0 | 4406 | PRA 193-079 | .43 | 11,0 | .09 | 2,2 | .35 | 9,0 |
| .16 | 4,0 | .24 | 6,0 | 4407 | PRA 193-157 | .51 | 13,0 | ||||||
| .24 | 6,0 | .31 | 8,0 | 4408 | PRA 193-236 | .57 | 14,5 | ||||||
- Designed for fast and easy installation with no tools – just fingertip pressure required.
- Simply place rivet into the hole and press down on the head to fasten; arrow shape flares to securely fasten components.
- To release, simply pull up on rivet head section.
- Round head provides a clean, finished look.
QuickSpecs
| Material | Nylon 6 |
|---|---|
| Flammability Rating | UL 94V-2 |
| Temperature Range | -22°F (-30°C) to 167°F (75°C) |
