HEYClip™ SunRunner® Cable Clips for 1-2 Cables

Part number and specification

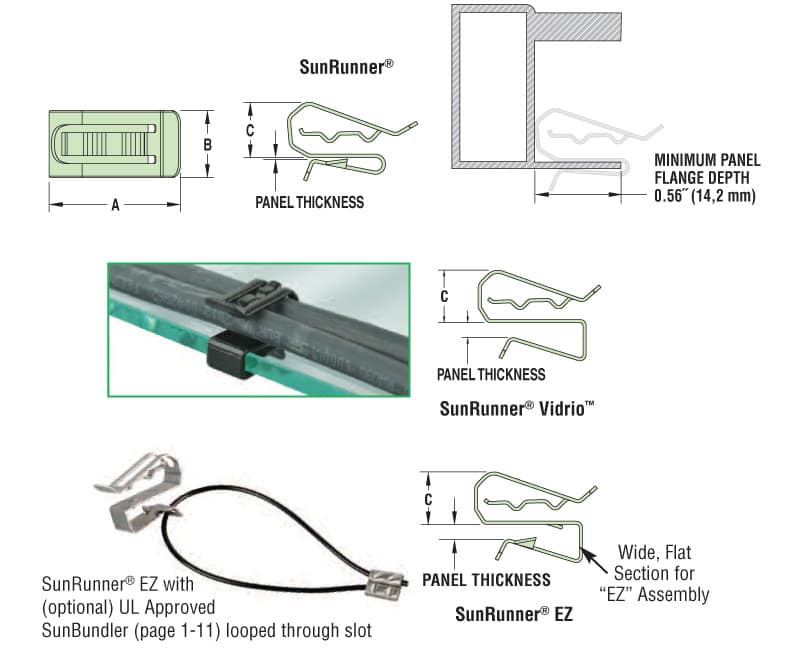

PANEL THICKNESS CLAMPING RANGE				MINIMUM PANEL FLANGE DEPTH		WIRE DIA. RANGE	PART NO.		DESCRIPTION	FOOTPRINT A x B		OVERALL HEIGHT C
Minimum		Maximum		MINIMUM PANEL FLANGE DEPTH			304 Stainless	316 Stainless		FOOTPRINT A x B		OVERALL HEIGHT C
in.	mm.	in.	mm.	in.	mm.		304 Stainless	316 Stainless		in.	mm.	in.	mm.
1-2 Wires - SunRunner Clip for panels up to .125" (3,2 mm) thick
.055	1,4	.125	3,2	0.56	14,2	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6405	S6490	SunRunner^® Clip 100 Pack	1.00 x .50	25,4 x 12,7	.39	9,9
.055	1,4	.125	3,2	0.56	14,2	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6445	S6495	SunRunner^® Clip Bulk	1.00 x .50	25,4 x 12,7	.39	9,9
1-2 Wires - SunRunner VidrioTM Clip for GLASS panels up to .250" (6,4 mm) thick
.13	3,2	.25	6,4	-	-	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6460	-	SunRunner^® Vidrio™ Clip 100 Pack	.99 x .52	25,1 x 13,2	.45	11,4
.13	3,2	.25	6,4	-	-	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6500	-	SunRunner^® Vidrio™ Clip Bulk	.99 x .52	25,1 x 13,2	.45	11,4
1-2 Wires - SunRunner EZ Clip for panels up to .250" (6,4 mm) thick
.09	2,3	.25	6,4	-	-	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6407	-	SunRunner® EZ Clip 100 Pack	1.00 x .50	25,4 x 12,7	.41	10,4
.09	2,3	.25	6,4	-	-	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6447	-	SunRunner® EZ Clip Bulk	1.00 x .50	25,4 x 12,7	.41	10,4

Features

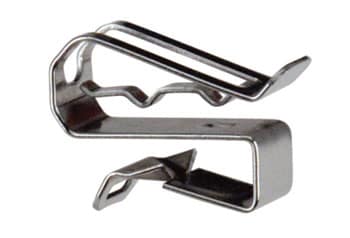

Heyco’s SunRunner and SunRunner EZ’s robust “double-compression” design securely holds up to two (2) cables from .20″ (5,1 mm) to .30″ (7,6 mm) in diameter.
Heyco SunRunner Clips are designed to provide a better method for PV module wire management and may be used wherever single or multiple cable management is needed.

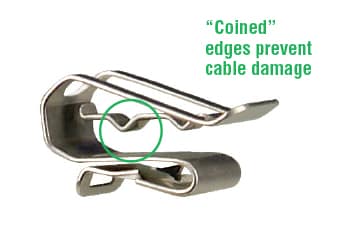

Smooth clip edges prevent damage to cable insulation.
Locking tabs securely fasten clips to module extrusions, or other panels.
Generous lead-in for installation without tools.
Screwdriver slot for easy removal or movement of clips if necessary.
Neatly dresses cables on PV panel frames or along mounting channels.
Constructed from corrosion resistant 304 stainless steel, not for use in a marine salt water environment.
316 stainless steel now available for marine and other harsh environments.

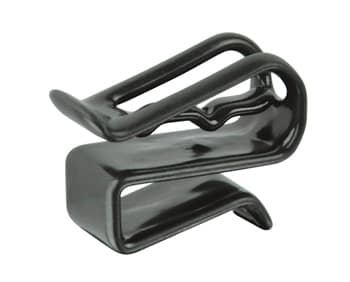

SunRunner Vidrio™ is designed to mount directly onto the glass panel with compression force only. Will not harm the glass surface, and the black color meets many HOA requirements!
The TPE coating on the SunRunner Vidrio™ provides an electrically insulated surface.
SunRunner EZ’s are designed for thicker module frames as well as racking – accommodates profiles up to Wide, Flat .250˝ (6,4 mm) thick!

Material	.025″ thick 304 or 316 stainless steel
Certifications	Certified by UL for Compliance with both Canadian and US Requirements under File E54523
Temperature Range	-40°F (-40°C) to 572°F (300°C)
