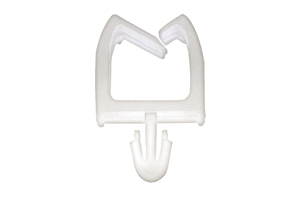

HEYClip™ Cable Holders - Arrowhead Mount

  • Part Numbers and Specifications
  • Features
WIRE
CAPACITY

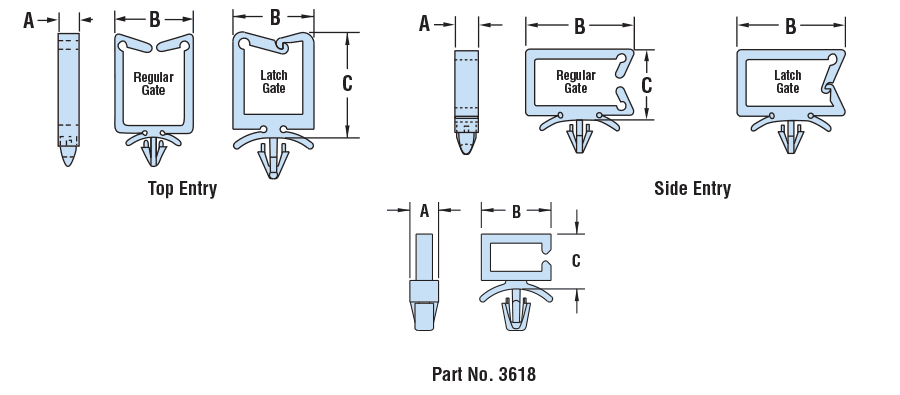

PART NO. DESCRIPTION OVERALL
HEIGHT
C
FOOTPRINT
A x B
MOUNTING
HOLE DIA.
Natural Black
in. mm. in. mm. in. mm. in. mm.

Top Entry-Regular Gate

For Panels up to .047" (1,2 mm) thick

.80 x .50 20,3 x 12,7 3596 - CH R-20 * .77 19,6 .22 x .93 5,5 x 23,6 .187 4,8
.80 x .85 20,3 x 21,6 3597 - CH R-28 * 1.11 28,4

For Panels up to .078" (1,9 mm) thick

.44 x .19 11,1 x 4,8 3600 3600B CH R-12 .48 12,2 .22 x .61 5,6 x 15,5 .187 4,8
.44 x .38 11,1 x 9,7 3605 3605B CH R-18 .72 18,2
.44 x .74 11,1 x 18,8 3610 3610B CH R-27 1.06 27,0
.44 x 1.05 11,1 x 26,7 3615 3615B CH R-35 1.38 35,0

For Panels up to .125" (3,2 mm) thick

.44 x .19 11,1 x 4,8 3601 3601B CH R-13-3 .51 13,0 .22 x .61 5,6 x 15,5 .187 4,8
.44 x .33 11,1 x 9,7 3606 3606B CH R-18-3 .71 18,0
.44 x .74 11,1 x 18,8 3611 3611B CH R-27-3 1.06 26,9
.44 x 1.05 11,1 x 26,7 3616 3616B CH R-35-3 1.37 34,8

Top Entry-Latch Gate

For Panels up to .078" (1,9 mm) thick

.44 x .14 11,1 x 3,6 3620 3620B CH L-12 .48 12,2 .22 x .61 5,6 x 15,5 .187 4,8
.44 x .33 11,1 x 8,4 3625 3625B CH L-18 .72 18,3
.44 x .69 11,1 x 17,5 3630 3630B CH L-27 1.07 27,2
.44 x 1.00 11,1 x 25,4 3635 3635B CH L-35 1.39 35,3

For Panels up to .125" (3,2 mm) thick

.44 x .14 11,1 x 3,6 3602 3602B CH L-13-3 .51 13,0 .22 x .61
5,6 x 15,5 .187 4,8
.44 x .33 11,1 x 8,4 3607 3607B CH L-18-3 .71 18,0
.44 x .69 11,1 x 17,5 3612 3612B CH L-27-3 1.06 27,0
.44 x 1.00 11,1 x 25,4 3617 3617B CH L-35-3 1.38 35,0

Side Entry-Regular Gate

For Panels up to .063" (1,6 mm) thick

.43 x .38 10,9 x 9,7 3609 - CH R-17-90 .63 16,0 .22 x .54 5,6 x 13,6 .187 4,8
.19 x.42 4,8 x 10,7 3618 - CH R-11-90 .42 10,7

For Panels up to .090" (2,3 mm) thick

.44 x .75 11,1 x 19,1 3652 3652B CH R-27-90** .62 15,9 .22 x 1.00 5,6 x 25,4 .187 4,8
.44 x 1.06 11,1 x 26,9 3667 3667B CH R-35-90** .22 x 1.33 5,6 x 33,8

Side Entry-Latch Gate

For Panels up to .090" (2,3 mm) thick

.44 x .72 11,1 x 18,3 3697 3697B CH L-27-90** .66 16,7 .22 x 1.00 5,6 x 25,4 .187 4,8
.44 x 1.03 11,1 x 26,2 3712 3712B CH L-35-90** .22 x 1.33 5,6 x 33,8

Standard colors natural and black, except as noted. Flame retardant UL 94V-0 material available, consult Heyco.
* Part Nos. 3596 and 3597 are of relatively wide construction, relative to the parts that follow.
** White

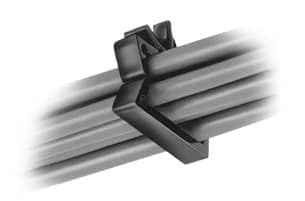

  • Gather and direct single or bundles of cable at low cost.
  • Two orientations:
    1. Vertical for Top Entry and narrow width.
    2. Horizontal for Side Entry and low height where clearance is a problem.
  • Two gate types:
    1. Regular gate secures cables with tension alone.
    2. Latch gate locks cables in place.
  • Both types install with fingertip pressure into a 3/16" (4,8 mm) diameter mounting hole.

Top Entry: Part Description Key:
CH X-Y-Z, where R = Regular Gate,
L = Latch Gate, Y = Overall Height (mm), and Z, if present, distinguishes Panel Thickness.

Side Entry: Part Description Key:
CH X-Y-Z, where R = Regular Gate,
L = Latch Gate Y = Approximate Overall Height (mm), and Z is always 90 indicating a Side Entry part.

QuickSpecs

Material   Nylon 6/6
Certifications ru Recognized under UL File E54523 (Top Entry parts only)
Flammability Rating   94V-2
Temperature Range   32°F (0°C) to 185°F (85°C)
