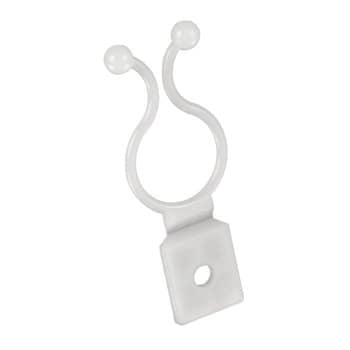

HEYClip™ Wave Lock

Wave Lock - Screw Mount

  • Part Numbers and Specifications
  • Features

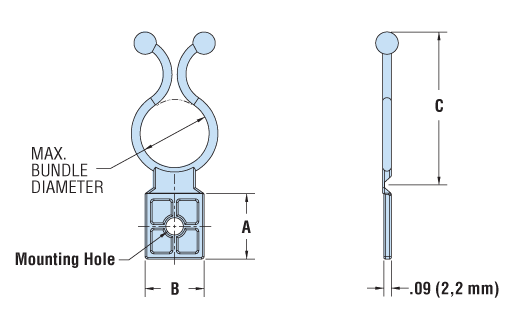

MAXIMUM
BUNDLE DIAMETER
PART
NO.
DESCRIPTION SCREW MOUNT
FOOTPRINT
A x B
OVERALL HEIGHT
ABOVE PANEL
C
MOUNTING
HOLE
DIAMETER
Natural in. mm. in. mm. in. mm.
in. mm.
.85 21,6 12100 WLSM 750 .75 X .67 19,0 X 17,0 1.75 44,5 .20 5,0

Standard color natural.

  • Barrel ends for greater holding power.
  • Smooth rounded edges won't cut into cable's insulations–or installer's hands.
  • Locking ends twist into place with fingertip pressure.
  • Integrated screw mounting tab.

QuickSpecs

Material Nylon 6/6
Flammability Rating 94V-2
Temperature Range 32°F (0°C) to 185°F (85°C)
