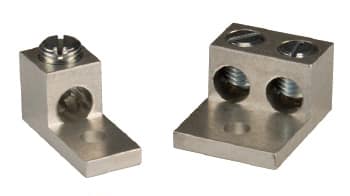

Heyco® Aluminum Solderless Connectors
- Part Numbers and Specifications
- Features

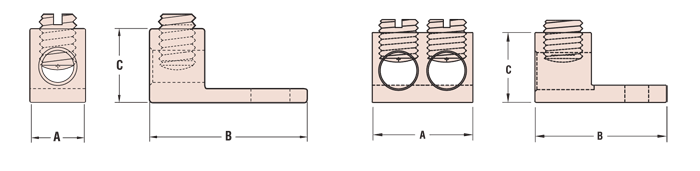

| WIRE RANGE (AWG) |
PART NO. | DESCRIPTION | PART DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A Width |
B Length |
C Height |
Bolt Size | |||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||
Single Conductor |
||||||||||
| 4-14 | 1863 | A35 | .50 | 12,7 | 1.06 | 26,9 | .50 | 12,7 | 1/4 | 6,4 |
| 2-14 | 1864 | A90 | .50 | 12,7 | 1.16 | 29,5 | .56 | 14,2 | ||
| 1/0-14 | 1884 | A125 | .63 | 16,0 | 1.47 | 37,3 | .79 | 20,1 | ||
Two Conductors |
||||||||||
| 2-14 | 1864-2 | A90-2 | .91 | 23,0 | 1.16 | 29,5 | .56 | 14,2 | 1/4 | 6,4 |
| 1/0-14 | 1884-2 | A125-2 | 1.22 | 31,0 | 1.46 | 37,1 | .79 | 20,1 | ||
- Compact design—lightweight yet strong.
- Electro-tin plated for low contact resistance and corrosion protection when used with copper conductors.
- Require no special installation tools.
- UL and CSA certified for use with copper and aluminum conductors.
- Ports are marked with catalog description and conductor range.
- DFARS Compliant
QuickSpecs
| Materials | 6061-T6 aluminum alloy; electrolytic copper | |
|---|---|---|
| Certifications |  |
Listed under Underwriters' Laboratories File E80121 |
 |
Certified by the Canadian Standards Association File 242954 & 246619 | |
| Flammability Rating | 94V-0 |
