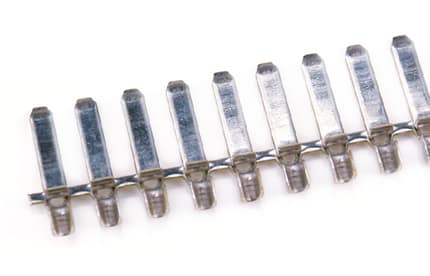

Heyco® Business Machine
Male Contacts

  • Part Numbers and Specifications
  • Features

* Use the Heyco Universal Applicator Die (indicated by “U” in the Die Part No.), click here.
** “XX” represents Wire Gauge. Please specify Wire Gauge when ordering.

PART DATA PART NO. APPLICATION TOOLING
Type Euro
Mold Line
AWG
Range
Material Die** Feeds Tool
Packs
Crimp
Punch
Anvil
mm.

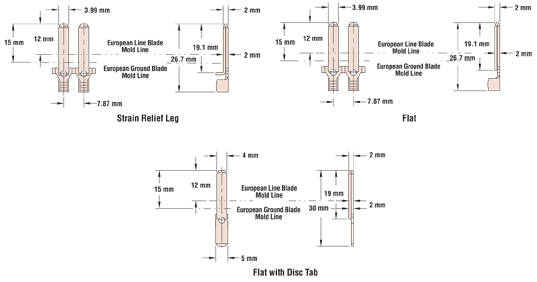

Strain Relief Leg 12/15 18-14 Tin-Pl 5759 5759UXX5 Left to Right B104L/B105L C296 C304
5760 5760UXX5 Right to Left B104R/B105R
Flat 12/15 18-14 Tin-Pl 8151 8151UXX5 Left to Right B104L/B105L C296 C304
Post-Ni 8153 8153UXX5
Tin-Pl 8150 8150UXX5 Right to Left B104R/B105R
Flat w/Disc Tab 12/15 18-14 Tin-Pl 8156 - Bulk - - -

European Style, Folded Design–IEC-320 - C14 Male - 250V, 10 Amps

  • IEC60320 compatible.
  • For Heyco's IEC-14 Plug, click here.
  • DFARS Compliant

QuickSpecs

Materials Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)
Tin-Pl = Brass, Tin plated before or after stamping
Post-Ni = Brass, Nickel plated after stamping
