Heyco® IEC-14 Plug
For IEC-13 Female Connectors
- Part Numbers and Specifications
- Features

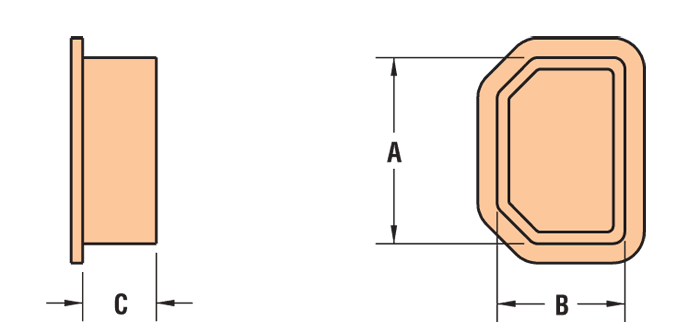

| PART NO. | DESCRIPTION | PART DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|
| Black | A | B | C | ||||
| in. | mm. | in. | mm. | in. | mm. | ||
| G5365 | IECP C14 | .96 | 24,4 | .66 | 16,8 | .38 | 9,7 |
Standard color black.
- These non-conductive plugs are used to protect female IEC-13 connectors during transit and storage.
- Will keep your connector free of dust, moisture, and contaminants.
- The flanged Plug head provides ease of installation and removal.
- Consult Heyco for the IEC-20 Plug (for IEC-19 female connectors).
QuickSpecs
| Material | LDPE |
|---|---|
| Temperature Range | -94°F (-70°C) to 150°F (66°C) |
