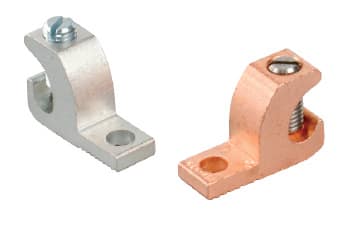

Heyco® Copper and Aluminum Lay-In Connectors
- Part Numbers and Specifications
- Features
| Wire Range AWG | PART NO. | DESCRIPTION | CONSTRUCTION | PART DIMENSIONS (in.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | F | H | ||||
| 4-14 | S6525 | LC 14-4 1-Pole Cu Tinned | Tinned Copper with Stainless Steel Set Screw | 1.05 | .75 | .38 | .22 | .19 | .17 |
| S6526 | LC 14-4 1-Pole Cu | Copper with Stainless Steel Set Screw | 1.04 | .75 | .38 | .22 | .21 | .17 | |
| S6527 | LC 14-4 1-Pole Al | Aluminum with Stainless Steel Set Screw | 1.07 | .75 | .38 | .22 | .19 | .15 | |
- Copper construction parts available in plated and unplated versions.
- Copper construction parts UL/CSA approved for direct burial and suitable for both indoor and out door use.
- Least expensive aluminum option suitable for indoor use only.
- Recommended wire range AWG 4 thru AWG 14.
- DFARS Compliant
QuickSpecs
| Material | Tinned copper or copper with stainless steel set screw; or High Strength, High Conductive Aluminum Alloy 6061T6 with steel set screw | |
|---|---|---|
| Certifications |  |
Listed under Underwriters' Laboratories File E467246 |
