Heyco® Screw to Tab Terminal Blocks - 3 Tabs

  • Part Numbers and Specifications
  • Features

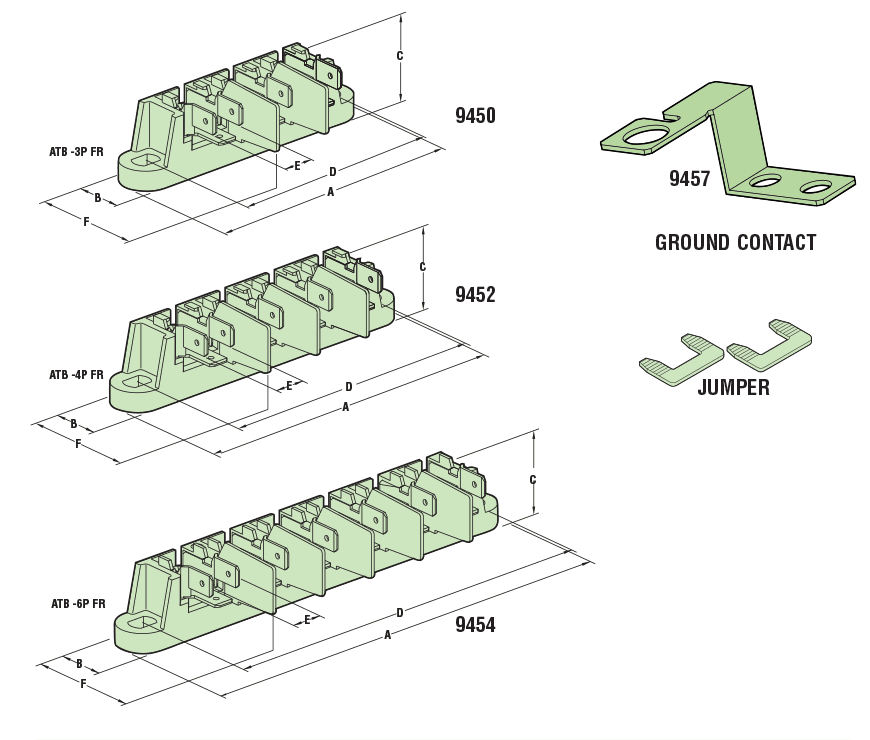

WIRE SIZE AMPS POLES PART NO. DESC. Screws (Metric) PART DIMENSIONS
AWG mm2 A B C D E F
White
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.
8-18 10 40 3 9450 ATB-3P FR M5,0 3.19 81,0 .59 15,0 1.00 25,4 2.60 66,0 .41 10,4 1.48 37,5
9451 ATB-3P FR
w/ Ground
8-18 10 40 4 9452 ATB-4P FR M5,0 3.90 99,0 .59 15,0 1.00 25,4 3.31 84,0 .41 10,4 1.48 37,5
8-18 10 40 6 9454* ATB-6P FR M5,0 5.31 135,0 .59 15,0 1.00 25,4 4.72 120,0 .41 10,4 1.48 37,5
9455* ATB-6P FR
w/ Ground
  9456
Jumper for Screw to Tab Poles
  9457
Ground for Screw to Tab TB

Standard color flame retardant white.
*Includes three jumpers. To order additional jumpers, see part 9456.

Screw to (3) Tabs Flame Retardant and UL 94V-0

  • Three .250" by .031" (6,3 by 0,8 mm) tabs per pole.
  • ATB-3P poles are marked 1, 2, and .
  • ATB-4P poles are marked 1, 2, 3, and .
  • ATB-6P poles are marked 1, 2, 3, 4, 5, and .
  • All sizes are rated at 300 volts.
  • Self-grounding version is available. Identical to the base parts except that an extension on the grounding pole makes direct contact with the panel. The extension is secured with two self-tapping screws.
  • Ground contact (Part No. 9457) - Grounds terminal block to the panel. May be ordered separately or with the listed Appliance Terminal Blocks.
  • Jumper (Part No. 9456) - To connect terminal block poles. For use with Heyco's Screw to Tab terminal blocks.
  • DFARS Compliant

QuickSpecs

Materials   Nylon 6/6 and galvanized steel
Certifications cruus Recognized under Component Program of Underwriters' Laboratories to both Canadian and US requirements File E197025
Flammability Rating   94V-0
Temperature Range   -.4°F (-18°C) to 302°F (150°C)
