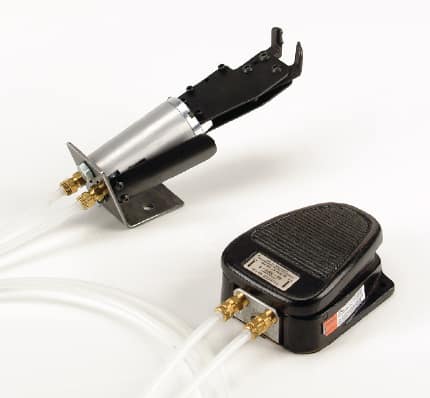

Part No. 0T02 Bench Mount Kit shown
installed with Heyco Air Tool
Competitor Cross Reference
% can be used as a wildcard in search

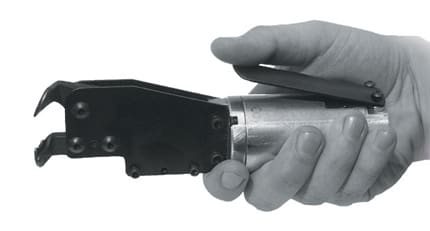

Heyco® Original Strain Relief
Bushing Air Tool, Air Tool Jaws
& Replacement Parts
Air Tool and Air Tool Jaws Directory For Heyco Original Strain Relief Bushings
- Part Numbers and Specifications
- Features
| PANEL HOLE DIAMETER | FOR ORIGINAL STRAIN RELIEF BUSHINGS | AIR TOOL PART NO. INCLUDING JAWS |
JAW PART NO.* | ||
|---|---|---|---|---|---|
| in. | mm. | Upper | Lower | ||
| .375 | 9,5 | 2L-1, 2M-1, 2P-4, 2P-5 | 0171 | OT47 | OT48 |
| .437 | 11,1 | 3A-4 | 0173 | OT49 | OT50 |
| 3L-1, 3P-4, 3P-5, 3W-1, 13-1 | 0175 | OT51 | OT52 | ||
| .500 | 12,7 | 4A-6, 14A-1 | 0177 | OT53 | OT54 |
| 4K-1, 4K-4, 4K-6, 4L-1, 4L-4, 4N-4, 4N-5, 4N-6, 4N-7, 4P-4, 5L-1, 5M-3, 5MN-3, 5N-4, 5N-5, 5N-7, 5P-4, 5P-7, 5P3-4, 6W-1, 14-1, 15-1 |
0179 | OT55 | OT56 | ||
| .562 | 14,3 | 5K-4, 5KN-4, 5W-1, 16-1 | 0181 | OT59 | OT60 |
| .625 | 15,9 | 6K-5, 6L-1, 6N-4, 6N-7, 6N2-4, 6N3-4, 6N3-5, 6N3-7, 6N4-4, 6P-4, 6P-5, 6P-7, 6P2-5, 6P3-4, 6P3-5, 6P3-7, 6P4-4, 6P10, 6P30, 10N-2, 10-2, 11-2, 11K-2 |
0183 | 0T61 | 0T62 |
| .750 | 19,0 | 7N-2 | 0185 | OT631 | OT642 |
| 7P-2, 7P-7, 17-2 | 0187 | OT651 | OT662 | ||
| .875 | 22,2 | 7K-2, 7KR-2, 7L-2, 7W-2, 8L-1, 8P-2, 24-1, 31-2, 34-2 |
0189 | OT671 | OT682 |
| 8N-2 | 0193 | OT711 | OT722 | ||
| .375 x .625 | 9,5 x 15,9 | 300-1, 302-1 | 0191 | OT69 | OT70 |
| .560 x .730 | 14,2 x 18,5 | 20-1, 20L-1, 30-1, 30-1A, 30-1B | 0195 | OT73 | OT74 |
| .750 x .875 | 19,0 x 22,2 | 23-1, 33-1 | 0197 | OT75 | OT762 |
1 Secondary (upper) Jaw style. When ordering additional spacer may be required (P/N OT36[2]).
2 Secondary (lower) Jaw style. When ordering additional spacer may be required (P/N OT77[1]).

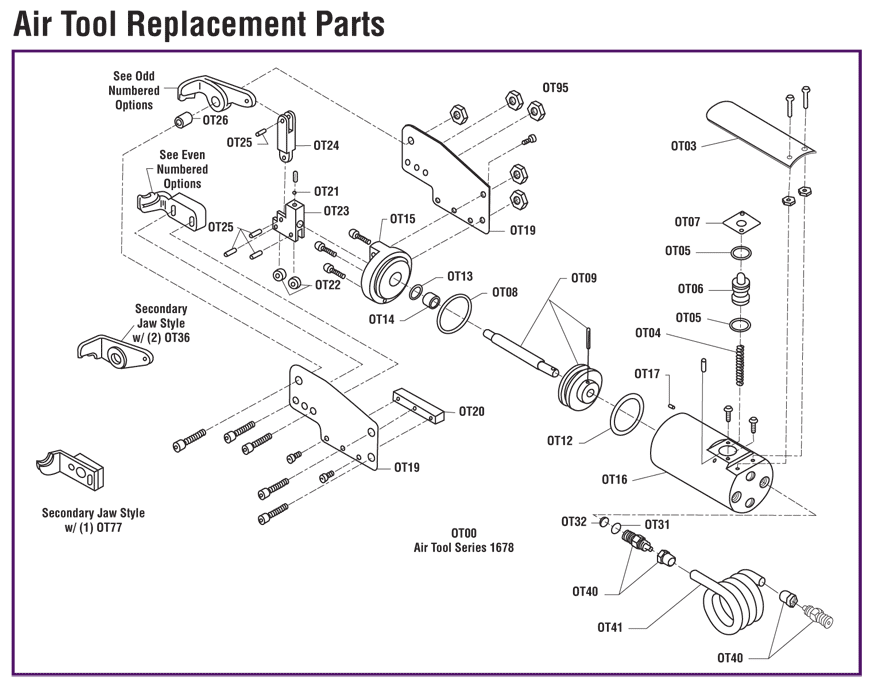

*Jaw part number if purchased separately. See drawing below.
Ordering Procedure for Air Tools
- On the tabular chart, locate the panel mounting hole diameter and Original Strain Relief Bushing that you are using.
- The appropriate Air Tool is shown on the same line.
- Jaws may be purchased separately, see the two right most PART NO. columns.
- Bench Mount Kit Part No. 0T02 provides the necessary components to convert a hand Air Tool to a bench mounted unit. The bench Air Tool can be mounted in any convenient position on the assembly area work surface. The unit is foot activated, leaving the operator's hands free.
- Click here for Original Strain Relief Assembly Pliers
- Click here for attaching Pliers for Metal Strain Reliefs
