Heyco® Split Panel
Strain Relief Bushings
For Split Panel Mounting Holes
- Part Numbers and Specifications
- Features

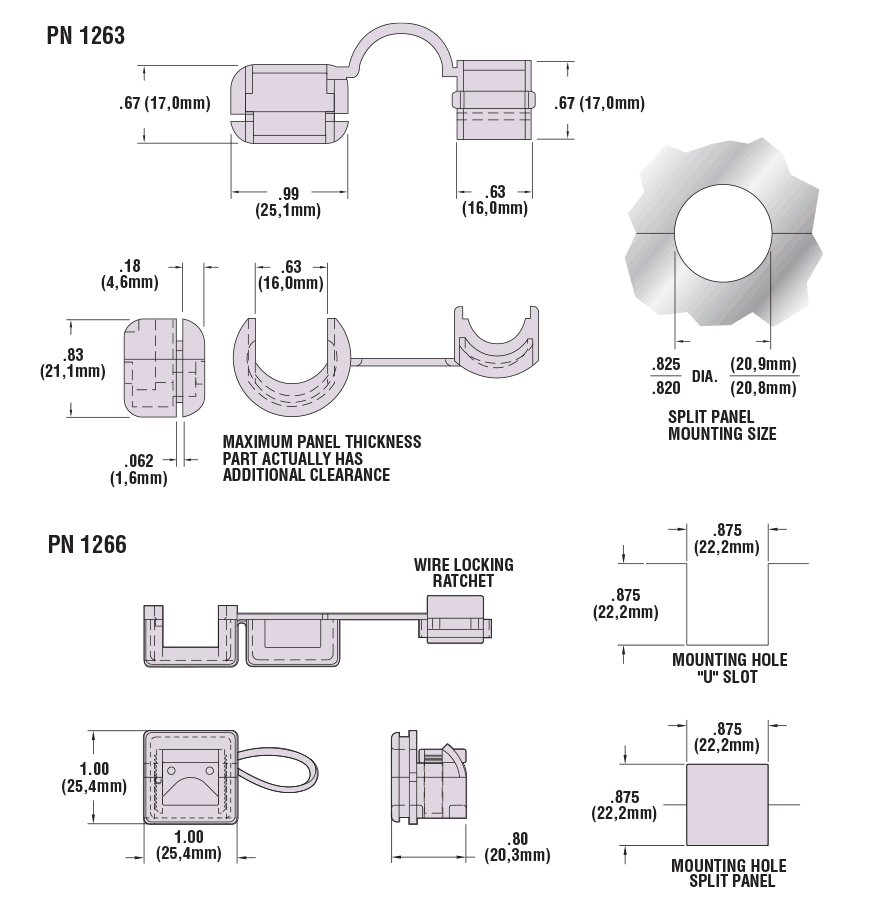

| WILL FIT THESE CABLES | PANEL DIMENSIONS | PART NO. | DESC. | BODY LENGTH |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UL Type | AWG/ Conductors |
Approximate Size |
Mounting Hole Size |
Maximum Panel Thickness |
Black | ||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||||
| SO | 14/4 | .560 | 14,2 | .825 | 21,0 | .062 | 1,6 | 1263 | SR 8R-2 | .670 | 17,0 |
| SO | 12/3 | .590 | 15,0 | ||||||||
| Round, Flat or Multiple |
Multiple | up to .600 |
up to 15,2 |
.875x.875 | 22,2x22,2 | .100 | 2,5 | 1266 | SR 8R-200 | .800 | 20,3 |
Standard color black. Consult Heyco for white and other colors.

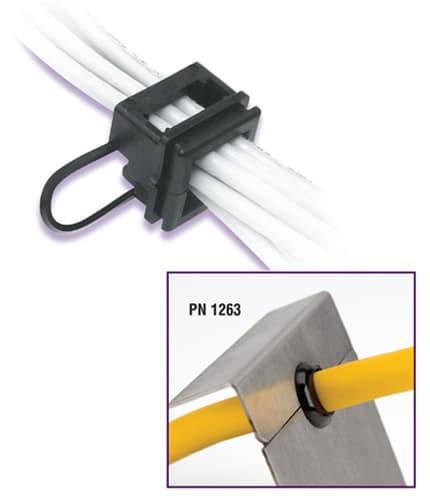

- Designed to be installed in a split panel mounting hole or dropped into a slot.
- Can be used for one wire or bundles of wire (round or flat wire).
- Securely anchors, insulates, and protects wire at panel entry points against forces of pull, push, or twist.
- Part 1266 is assembly friendly and self-locks onto the wire. It may be preassembled offline for final assembly at a later time or remote location, for lower installed cost and faster assembly. It has a unique wire locking ratchet that allows for generous wire range from .250" (6,4 mm) to .600" (15,2 mm).
- Part 1266 UL recognized for multiple cables/conductors.
QuickSpecs
| Material | Nylon 6/6 | |
|---|---|---|
| Certifications |  |
Recognized under the Component Program of Underwriters' Laboratories File E15331 |
 |
Certified by the Canadian Standards Association File 8919 | |
| Flammability Rating | 94V-2 | |
| Temperature Range | -.04°F (-18°C) to 221°F (105°C) |
