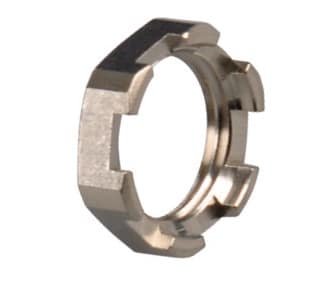

HEYClean® Nickel-Plated Brass Drain Plug Locknuts
For Use with HEYClean™ Threaded Drainage Plugs
- Part Numbers and Specifications
- Features

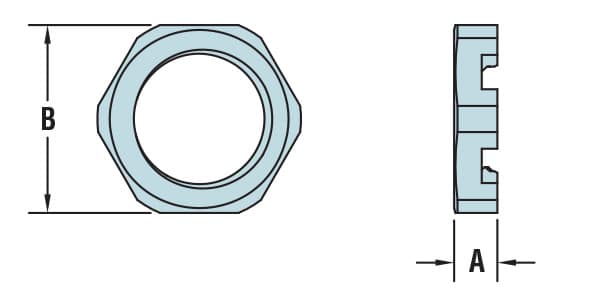

| THREAD Type/Size |
PART NO. | DESC. | PART DIMENSIONS | |||
|---|---|---|---|---|---|---|
| A Thickness |
B Wrenching Flats |
|||||
| in. | mm. | in. | mm. | |||
| M12 x 1.5 | 4360 | BRASS DPLN M12 | .18 | 4,5 | .59 | 15,0 |
| M16 x 1.5 | 4361 | BRASS DPLN M16 | .22 | 5,5 | .75 | 19,0 |
| M20 x 1.5 | 4362 | BRASS DPLN M20 | .22 | 5,5 | .94 | 24,0 |
Drain Plug Locknuts
- Quick and easy installation into Clearance Holes only.
- Locknuts feature special "cutout" to allow water to completely drain from enclosure, when used with HEYClean™ Threaded Drainage Plugs.
- DFARS Compliant
QuickSpecs
| Material | Nickel-Plated Brass |
|---|---|
| Temperature Range | -40°F (-40°C) to 230°F (110°C) |
| IP Rating | Membrane - IP66/IP68/IP69 Filter Disc - IP55/ IPX9K Drainage Element - IP4X |
