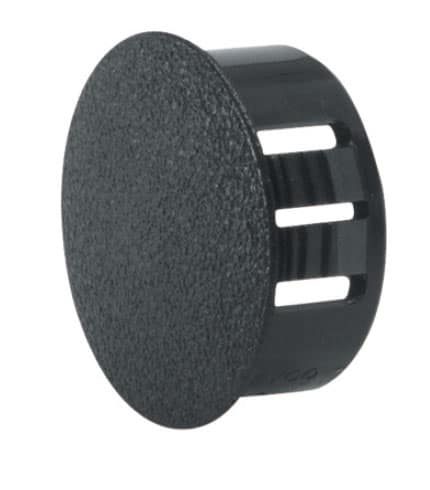

Heyco® Snap-In Metric Dome Plugs

Multiple Locking Steps for Panel Thickness up to 4,1 mm (.162″) Mounting Hole Diameter Range: 13,0 mm (.512″) to 34,2 mm...

Specifications

Part number and specification

MOUNTING HOLE DIAMETER		PART NO.		DESCRIPTION	PART DIMENSIONS

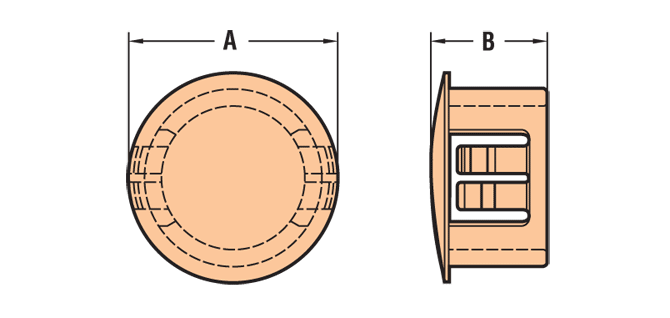

MOUNTING HOLE DIAMETER		Black	White		A Head Diameter		B Overall Height
mm.	in.	Black	White		mm.	in.	mm.	in.
13,0	.512	2203	2204	MDP 13	14,2	.56	10,3	.406
16,0	.630	2128	2130	MDP 16	18,5	.73
20,0	.787	2131	2132	MDP 20	22,6	.89
22,0	.866	2205	2206	MDP 22	25,9	1.02	11,5	.453
25,0	.984	2133	2134	MDP 25	29,8	1.17
28,0	1.102	2215	2216	MDP 28	31,2	1.23
32,0	1.260	2135	2136	MDP 32	35,3	1.38
34,2	1.347	2218	2219	MDP 34	38,1	1.50

Standard color black. Consult Heyco for other colors.

Multiple sizes for use in 13,0 mm (.512″) to 34,2 mm (1.347″) diameter holes. For other metric sizes, consult Heyco.
Close unneeded panel holes.
Quick and easy installation.
Convex, matte finish head tapers to a thin edge.
Lock firmly into panel up to 4,1 mm (.162″) thick.
Approximate Head Thickness: 1,6 mm (.062″).
For Threaded Metric Plugs, click here.
For our complete range of Dome Plugs, see Dome Plugs, Large Dome Plugs, and Thick Panel Dome Plugs.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E51579
Certifications		Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		-40°F (-40°C) to 221°F (105°C)
