Heyco® Grommet Channels - "DS" Channels

Specifications

Part number and specification

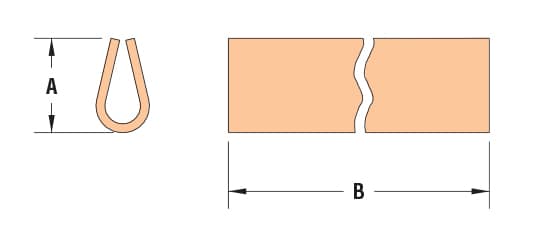

FIT PANEL THICKNESS RANGE				PART NO.	DESCRIPTION	PART DIMENSIONS
FIT PANEL THICKNESS RANGE				Gray		A Overall Height		B Length
Minimum		Maximum				in.	mm.	ft.	M.
in.	mm.	in.	mm.			in.	mm.	ft.	M.
4′ (1.2 M) Strip
.031	0,8	.062	1,6	12430	DS-062-48″	.30	7,6	4	1.2
.020	0,5	.125	3,2	12431	DS-125-48″	.38	9,5
.031	0,8	.188	4,8	12432	DS-188-48″	.50	12,7
.045	1,1	.250	6,4	12433	DS-250-48″	.63	15,9

Standard color gray.

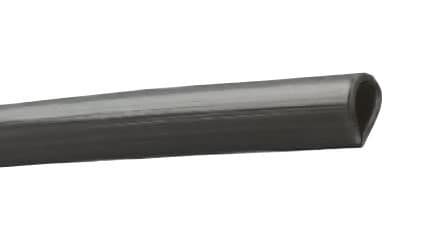

This flexible Grommet Channel is ideal for protecting panel edges from being damaged.
For use as wear strips, non-abrasive edging, noise-reducing conveyor strips, framing, or to protect from sharp edges.
Features built-in lubricant for reduced friction and longer part life.

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
