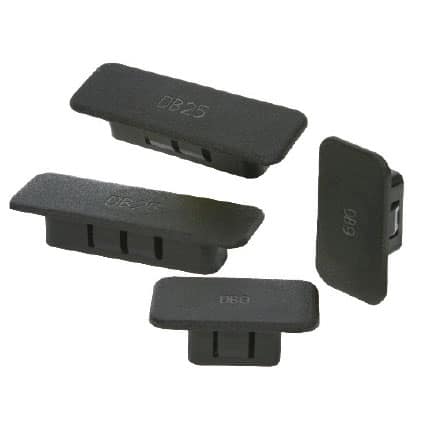

Heyco® Nylon D-Subminiature Mounting Hole Plugs

Clearance Fit for Panel Thickness up to .170″ (4,3 mm)

Specifications

Part number and specification

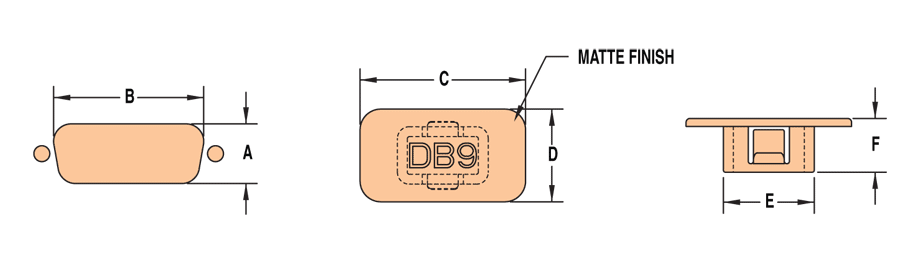

MOUNTING HOLE SIZE				PART NO.	DESCRIPTION	PART DIMENSIONS
MOUNTING HOLE SIZE				Black		Head				Body
A		B				C		D		E		F
in.	mm.	in.	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm.
.45	11,4	.81	20,6	2966	POP-DB9	1.25	31,8	.70	17,8	.69	17,5	.41	10,4
		1.13	28,8	2968	POP-DB15	1.57	39,8	.70	17,8	1.05	26,7
		1.67	42,5	2970	POP-DB25	2.12	51,0	.70	17,8	1.55	39,4
		2.32	59,1	2972	POP-DB37	2.77	70,4	.70	17,8	2.23	56,6

Standard color black. Consult Heyco for other colors.

Fit standard D-Subminiature Cutouts.
Provide aesthetic improvement for unused D-subminiature connector mounting holes.
Suitable for use as dust protection for unused parallel and serial ports on computers and other electrical equipment.
Cover unwanted holes in panel and are easily removable.
Quick and easy installation with fingertip pressure.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E51579
Certifications		Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		-40°F (-40°C) to 221°F (105°C)
