Heyco® Push-In Threaded Plugs

For SAE and NPT Threaded Ports

Specifications

Part number and specification

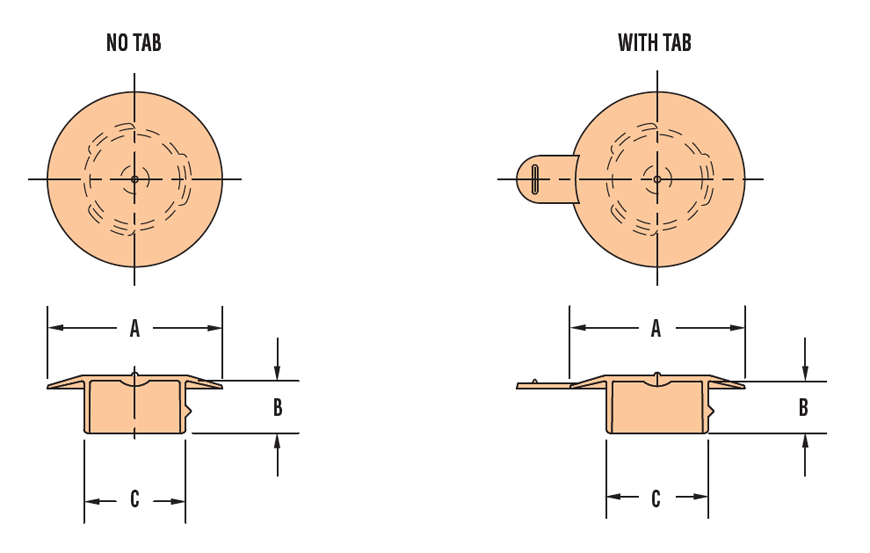

THREAD TYPE/SIZE		PART NO.		DESCRIPTION	PART DIMENSIONS
THREAD TYPE/SIZE		Black No Tab	Black With Tab		A Head Diameter		B Overall Height		C Bottom Dia.
SAE	NPT				A Head Diameter		B Overall Height		C Bottom Dia.
in.	in.				in.	mm.	in.	mm.	in.	mm.
1/4	-	9680	-	TP PI-250	.40	10,2	.25	6,4	.21	5,3
5/16	-	9681	-	TP PI-312	.52	13,2	.24	6,1	.25	6,4
3/8	1/8	9682	9682T	TP PI-375	.59	15,0	.24	6,1	.32	8,1
7/16	-	9683	9683T	TP PI-437	.64	16,3	.27	6,9	.37	9,4
1/2	1/4	9684	9684T	TP PI-500	.72	18,3	.27	6,9	.44	11,2
9/16	-	9685	-	TP PI-562	.81	20,6	.29	7,4	.50	12,7
5/8	3/8	9686	9686T	TP PI-625	.96	24,4	.29	7,4	.56	14,2
3/4	-	9687	9687T	TP PI-750	.95	24,1	.29	7,4	.68	17,3
7/8	-	9688	9688T	TP PI-875	1.15	29,2	.29	7,4	.80	20,3

Standard color black.

Offer the convenience of a push-in plug with the plugging quality of a threaded plug.

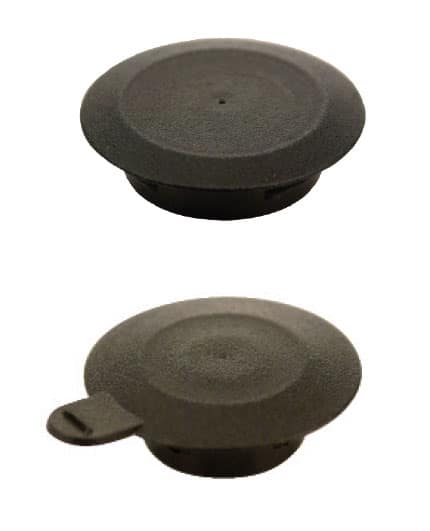

Available with or without convenient Pull Tab for easy removal.

Material	EVA Ethylene Vinyl Acetate (part nos. 9680 & 9681)
Material	LDPE Low Density Polyethylene (part nos. 9682 thru 9688T)
Temperature Range	EVA -98°F (-68°C) to 140°F (60°C) LDPE -94°F (-70°C) to 150°F (66°C)
