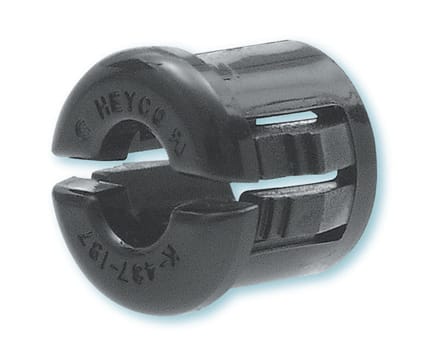

Heyco® Snub Bushings

Multiple Locking Steps for Panel Thickness up to .125″ (3,2 mm) Mounting Hole Diameter Range: .375″ (9,5 mm) to .875″ (22,2 mm)
Specifications

Part number and specification

MOUNTING HOLE
DIAMETER
APPROXIMATE
CABLE DIAMETER*
ACCOMMODATED

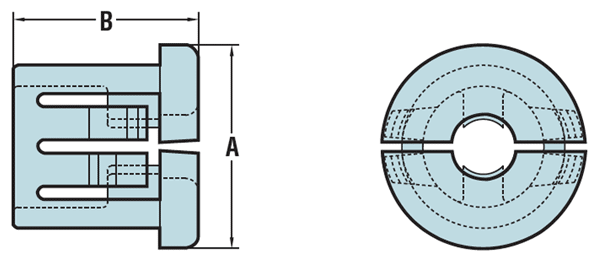

PART NO. DESCRIPTION PART DIMENSIONS CAD
Black A
Head
Diameter
B
Overall
Height
in. mm. in. mm. in. mm.
.375 9,5 1/8 3,2 2034 K 375-125 .46 11,7 .42 10,7 CAD
.437 11,1 3/16 4,8 2047 K 437-187 .47 11,9 .44 11,2 CAD
.500 12,7 1/4 6,4 2057 K 500-250 .56 14,2 CAD
.625 15,9 3/8 9,5 2068 K 625-375 .73 18,5 CAD
.750 19,1 1/2 12,7 2088 K 750-500 .91 23,0
.875 22,2 5/8 15,9 2109 K 875-625 1.02 25,8 .48 12,3

Standard color black. Consult Heyco for white and other colors.
*Consult Heyco for other Mounting Hole and Inside Diameter configurations. Our Axcell Rapid Response Team is ready to meet your requirements.




Features

  • The ID opens to accept the cable then closes firmly when installed into the mounting hole.
  • Provide insulation plus light strain relief.
  • Suitable for 1/8″ (3,2 mm) to 5/8″ (15,9 mm) diameter cable, tubing or hose.

QuickSpecs

Material   Nylon 6/6
Certifications ru Recognized under the Component Program of Underwriters’ Laboratories File E15331
csa Certified by the Canadian Standards Association File 8919
Flammability Rating   94V-2
Temperature Range   -.4°F (-18°C) to 221°F (105°C)
