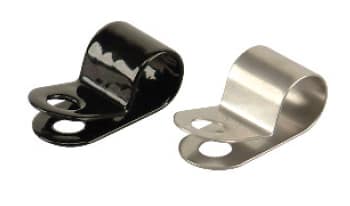

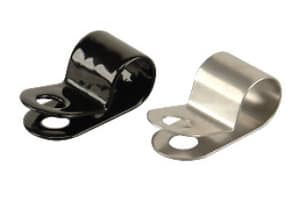

Heyco® Stainless Steel Cable Clamps

Download Datasheet
Specifications

Part number and specification

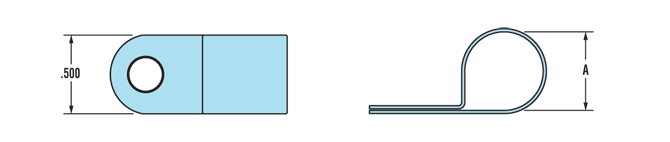

PART DIMENSION A STANDARD COATED
in. mm. PART NO. DESCRIPTION PART NO. DESCRIPTION
.19 4,7 S3373 CC H 3/16 SS S3323 CC H 3/16 SS Coated
.25 6,3 S3374 CC H 1/4 SS S3324 CC H 1/4 SS Coated
.38 9,5 S3376 CC H 3/8 SS S3326 CC H 3/8 SS Coated
.50 12,7 S3378 CC H 1/2 SS S3328 CC H 1/2 SS Coated
.63 15,9 S3380 CC H 5/8 SS S3330 CC H 5/8 SS Coated
.75 19,1 S3382 CC H 3/4 SS S3332 CC H 3/4 SS Coated
.88 22,2 S3384 CC H 7/8 SS S3334 CC H 7/8 SS Coated
Consult Heyco for additional sizes.



Features

  • For clamping cable or tubing securely into place, especially in harsh environments.
  • Smooth “coined clamp” edges prevent damage to cable insulation.
  • Constructed from corrosion resistant 304 stainless steel.
  • Coated parts are constructed from 304 stainless steel and coated with polyolefin a thermoplastic co-polymer
  • Coating provides a durable non-toxic, odorless coating that has very good low temperature flexibility and excellent electrical properties. This coating also has FDA food contact approval.
  • All parts require a .203″ (5,2 mm) mounting hole suitable for a #10 screw.
  • Not for use in a marine salt water environment. Contact Heyco for alternative materials.
  • DFARS Compliant

QuickSpecs

Material 304 Stainless Steel
Temperature Range 0°C (32°F) to 60°C (140°F)
